Portable CB radio station PNI Escort HP 62, multi standard, 4W, 12V, AM-FM, 5-level adjustable ASQ, 9-level RF gain, Dual Watch, Scan, Lock

Portable CB Portable CB Station HP 62 Escort
£67.95
Availability: In stock
SKU
PNI-HP62

Hp62

Multifunctional illuminated screen

The illuminated screen displays the current working mode of the station: the active functions (EMG, LOCK, SC, DW), the frequency band and the number of the selected channel, as well as the strength of the received signal and the transmitted signal.

Portable, small size

Similar to a walkie-talkie, the PNI Escort HP 62 CB station is extremely accessible and convenient to use due to its small dimensions, only 73 x 35 x 92 mm - without the power adapter. Thus, you can place the station in the armrest or in the restricted spaces on the dashboard of any car. The adapter cable is 30 cm long.

00001

PNI Escort HP 62 portable CB

Multiple functions

Although small in size, the PNI Escort HP 62 is equipped with most of the functions necessary for a CB station, thus satisfying the demands of any user. Functions such as RF Gain, Scan, Automatic Squelch, Dual Watch or Last channel recall make the station easy to adapt to different communication needs.

Connectivity: BNC connector, 2-pin plug and PL259 plug

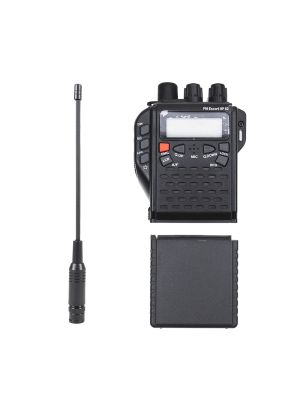

The PNI Escort HP 62 CB radio station has a double use: in the car as a mobile station together with the antenna mounted on the body and outside as a portable station by installing a BNC antenna and batteries (optional accessories). The microphone and loudspeaker connections allow the connection of a 2-pin headset with which we can communicate hands-free.

CB radio station PNI Escort HP 62

Video presentation

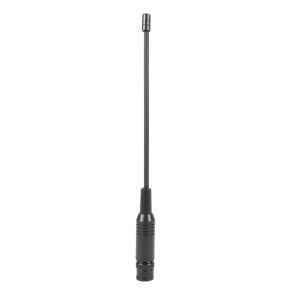

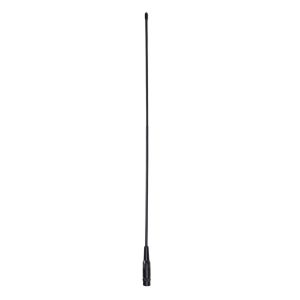

PNI Flex 27 antenna for PNI Escort HP 62 length 48 cm type BNC UK

CB transceiver PNI HP Escort 62

Write Your Own Review
You're reviewing:Portable CB radio station PNI Escort HP 62, multi standard, 4W, 12V, AM-FM, 5-level adjustable ASQ, 9-level RF gain, Dual Watch, Scan, Lock
Your Rating
Product identification
Product code PNI-HP62
Brandi PNI
General characteristics
Frequency 26.965-27.405 MHz
Emission band type AM-FM
channels 40
feeding 12 V
Dimensions (W x H x D / Weight) 73 x 35 x 92 mm (without power adapter) / 332 g (including adapter)
Sensitivity (10dB) 0.5uV (AM) 0.25uV (FM)
Speaker audio power 0.5W
Audio signal distortion less than 3% @ 1KHz
Emission power 4W
Modulation 90% +/- 5%
Absorbed current 900mA
Exemplary Portable
EEPROM memory Yes
Jack for additional external speaker Yes
Special features
Dual Watch Yes
Channel scan Yes
RF Gain Yes, 9 levels
ASQ - Automatic Squelch Yes, 5 levels
Keyboard lock Yes
LCR - the last selected channel
Multicolor screen Orange
Emergency channel button 9/19 Yes
Memory channels Yes
Adjustable ASQ Yes
SQ - Squelch Yes
RF PWR Yes
SWR meter Yes
VOX Yes
Accessory connection 2 pin plug
Automatic Digital Squelch (ASQ) Yes
Operating temperature -26 ~ +55°C
Screen Yes, multifunctional backlight
Front panel connections
2 pin jack Yes
The package contains
Radio station Yes
Microphone holder
Station mounting support Yes
Power cord Yes
Lighter plug Yes
Antenna adapter and 12 V power supply Yes
Manual in Romanian Yes



PNI-HP62
Lang Type Name Link
EU10 Declaration of Conformity Declaration of conformity Link
EU10 User manual User manual EU10 Link
