Kit CB CBI PNI Escort 62 and PNI Extra 48 with Magnet included, ASQ, RF gain

Be the first to review this product

Portable CB station with external antenna adapter and lighter socket + CB antenna with cable and magnet included

£80.66

Availability: In stock

SKU

PNI-HP62-48

Details

	Multifunctional illuminated screen The illuminated screen displays the current working mode of the station: the active functions (EMG, LOCK, SC, DW), the frequency band and the number of the selected channel, as well as the strength of the received signal and the transmitted signal.
Portable, small size Similar to a walkie-talkie, the PNI Escort HP 62 CB station is extremely accessible and convenient to use due to its small dimensions, only 73 x 35 x 92 mm - without the power adapter. Thus, you can place the station in the armrest or in the restricted spaces on the dashboard of any car.
	Multiple functions Although small in size, the PNI Escort HP 62 is equipped with most of the functions necessary for a CB station, thus satisfying the demands of any user. Functions such as RF Gain (9 levels), SQ (28 levels), Scan, Automatic Squelch (5 levels), Dual Watch or Last channel recall make the station easy to adapt to different communication needs.
Connectivity: BNC connector, 2-pin plug and PL259 plug The PNI Escort HP 62 CB radio station has a double use: in the car as a mobile station together with the antenna mounted on the body and outside as a portable station by installing a BNC antenna and batteries (optional accessories). The microphone and loudspeaker connections allow the connection of a 2-pin headset with which we can communicate hands-free.

CB antenna PNI Extra 45 with magnet included SWR 1.0

CB antenna, discreet and efficient

The PNI Extra 48 antenna is among the smallest CB antennas (it is only 45 cm high) and can be mounted both on cars, vans and minibuses. Its small dimensions make it almost imperceptible, easily confusing with the radio antenna. The average reception distance is 10 km.

Anti-noise design

The PNI Extra 48 CB antenna has a special anti-noise design that allows the air to slide around the spike, eliminating wind noise that could disrupt communication.

CB antenna PNI Extra 45 with magnet included SWR 1.0

Video presentation

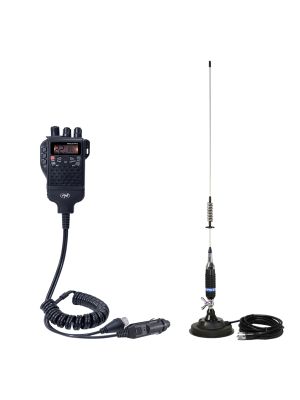

Kit CB transceiver PNI HP Escort 62 and PNI Extra 48 antenna with magnetic base, ASQ and RF gain

Reviews

Technical specifications

Product identification
Product code	PNI-HP62-48
General characteristics of the radio station
Frequency	26.965-27.405 MHz
Emission band type	AM-FM
feeding	12 V
Sensitivity (10dB)	0.5uV (AM) 0.25uV (FM)
Speaker audio power	0.5W
Absorbed current	900 mA
Model	Portable
Dimensions (W x H x D / Weight)	73 x 35 x 92 mm (without power adapter) / 332 g (including adapter)
Special features Radio station
ASQ - Automatic Squelch	Yes, 5 levels
RF Gain	Yes, 9 levels
Small Gain	Not specified
Emergency channel button 9/19	Yes
Roger Beep	Not specified
LCR - the last selected channel	Yes
Color screen	Yes
SQ - Squelch	Yes, 28 levels
General characteristics of the radio antenna
Working frequency	26 - 28 Mhz
Maximum power applied	150 W
Minimum SWR in the center of the band	less than 1.2:1
Length	45 cm (magnetic base included) Spike length: 44 cm
Impedance	50 Ohms
Material	Fiber glass
Connector type	PL259
Cable length (m)	4 m
Weight	193 g
Magnetic base	103 x 66 x 40 mm
The package contains
Radio station antenna	Yes
Magnetic base	Yes
Radio station microphone	Yes
Microphone holder	Not
Station mounting support	Not
Wired remote control	Not
External microphone for handsfree	Not
Charger/support for 8 batteries	Not
BNC antenna 19 cm	Not
Radio station case	Not
Support for 6 batteries	Not
