PNI MAB300LR swing gate automation kit, with 2 40W motors, remote controls and control panel, photocells and lamp, gate length 2 x 2.5m max, gate weight 200Kg

Swing gate automation system

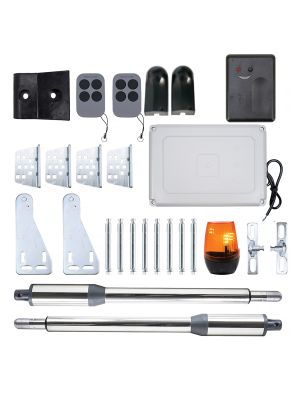

The swing gate opening automation kit is equipped with two 40W motors with a maximum rotation speed of 200rpm that can open or close gates with a maximum weight of 200 kg and a maximum length of 2.5 meters. The PNI MAB300LR gate automation kit includes the basic components necessary for the commissioning of a practical access control system: control unit, two piston motors (maximum extension 300 mm), two remote controls, two photocells, warning lamp, rubber stop and mounting accessories kit.

Remote control, compatible devices

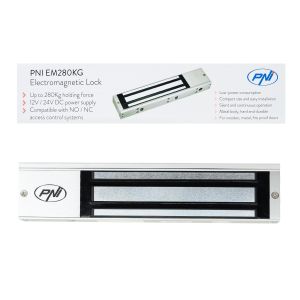

The gate can be opened and closed from the remote control. The system supports the connection of other access control devices such as electromagnetic yales, holding electromagnets, access buttons, access keypads. Optionally, the system can be connected to a solar system or a 24V backup battery.

Automatic closing with delay

The system can be set so that the gates close automatically after a certain amount of time. Also, the gates can be opened or closed simultaneously or at a maximum difference of 10 seconds from each other or only one gate out of two can be opened.

Obstacle detection

In the event of noticing an obstacle that occurs during opening or closing, the gates stop. Choose safety for your family

Installation diagram - dimensions

You can adjust the opening angle of the gate according to the dimensions in the table.

- D - the desired opening angle

- A and B - values must be observed from exactly the same horizontal line as the angle to obtain  the correct opening.

The values of columns A, B, C, E and L are expressed in mm.

The values of column D are expressed in degrees.

The length of the fully closed/open piston is present both in the documentation, in the photo and in the manual .
