PNI Escort HP 6500 CB radio station and microphone

CB radio station PNI Escort HP 6500 and additional microphone Dongle with Bluetooth PNI Mike 65 included

President Teddy II ASC AMFM, VOX, NB, ANL, 12V + CB Antenna PNI ML70 a

Kit Radio CB President Teddy II ASC AM/FM, VOX, NB, ANL, 12V + CB Antenna PNI ML70, length 70cm, 26-30MHz, 200W

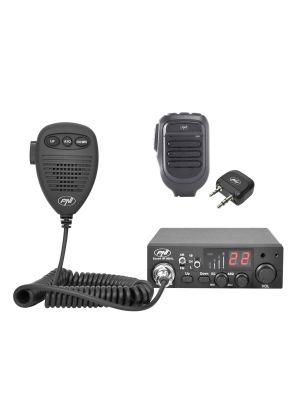

CB radio station kit PNI Escort HP 7120 ASQ with CB antenna PNI Extra 48 and additional microphone Dongle with Bluetooth PNI Mike 65 included

CB radio station kit PNI Escort HP 7120 ASQ with CB antenna PNI Extra 48 and additional microphone Dongle with Bluetooth PNI Mike 65 included
£84.95
Availability: In stock
SKU
PNI-PACK117

PNI-7120EX48 - PNI Escort HP 7120 ASQ CB radio station kit, RF Gain, 4W, 12V and PNI Extra 48 CB antenna with magnet included, 45cm, SWR 1.0 AM/FM switched only in the EU band



Reduced dimensions

The reduced dimensions of the station (only 110x120x28mm) allow it to be placed in very narrow spaces in your car, without disturbing you while driving.

CB radio station PNI Escort HP 7120 ASQ

PNI Escort HP 6500

Emission power 4W. 12V power supply.

The PNI Escort HP 7120 CB station complies with the legislation in force in Romania and Europe, having a maximum power of 4 W. It is powered at 12V using the cigarette lighter plug included in the package.

FM/AM

The PNI Escort HP 7120 CB station allows communication in the FM band used in Romania, but also in the AM band used in some countries in the European Union. In addition to the band type, the station also allows the selection of the norm (of the frequency band), a setting necessary for using the station in other European countries. Default band: EC 40CH FM 4W.

PNI Escort HP 6500

Radio station PNI Escort HP 6500

Double squelch, adjustable and automatic digital

PNI Escort HP 7120 is improved with a digital automatic system for noise and interference reduction (Digital Automatic Squelch). The dual manual and automatic squelch mode offers 28 and 9 level settings along with the RF Gain function for a finer reception adjustment.

Discreet and efficient

The PNI Extra 48 antenna is among the smallest CB antennas (it is only 45 cm high) and can be mounted both on cars, vans and minibuses. Its small dimensions make it almost imperceptible, easily confusing with the radio antenna. The average reception distance is 10 km.

antenna cb pni extra 48

CB antenna PNI Extra 45 with magnet included SWR 1.0

Aerodynamic design

The PNI Extra 48 antenna has a special anti-noise design that allows the air to slide around the spike, eliminating the noise produced by the wind.

PNI-MIKE65 - PNI Mike 65 Bluetooth Microphone and Dongle, dual channel, compatible with PNI HP 6500, PNI HP 6550, PNI HP 7120



Radio station, CB, Microphone, wireless, dongle, PNI, bluetooth

Dual channel radio communication via Bluetooth

PNI improves the comfort of CB radio communication through the new Mike 65 Wireless Microphone and Bluetooth Dongle product specially designed for PNI Escort HP 6500, PNI Escort HP 6550 and PNI Escort HP 7120 radio stations, but also for any other station with power on the RJ11 connection.

The microphone and dongle can communicate wirelessly with the CB radio station up to a maximum distance of 10m . You can power the radio from the cigarette lighter socket in the trunk or from the back seats, and the driver will transmit and receive only using the Mike 65 wireless microphone .

A special feature is the possibility of simultaneous dual channel connection with the radio station and the mobile phone. With the Mike 65 built-in speakerphone you can answer and talk on the phone just by pressing the PTT key on the microphone.

Radio station, CB, Microphone, wireless, dongle, PNI, bluetooth

Fast connection without interference

Connecting the wireless microphone to other Bluetooth devices is simple and quick. Through the microphone speaker you will receive messages that will confirm closing and opening it, making or losing the Bluetooth connection.

The wireless microphone with integrated speaker includes a 3.7V 1200 mAh battery that allows you to use it for up to 8 hours. To power it, use the USB-Jack 3.5mm cable included in the package, connected to a USB port.

The Bluetooth dongle does not include a battery, it is powered directly from the RJ11 connector of the radio station.

For discreet communication, the Mike 65 microphone can be replaced with the PNI BT-MIKE 7500 Bluetooth Headset with Microphone with PTT (not included) .

Radio station, CB, Microphone, wireless, dongle, PNI, bluetooth

Write Your Own Review
You're reviewing:CB radio station kit PNI Escort HP 7120 ASQ with CB antenna PNI Extra 48 and additional microphone Dongle with Bluetooth PNI Mike 65 included
Your Rating

PNI-7120EX48 - PNI Escort HP 7120 ASQ CB radio station kit, RF Gain, 4W, 12V and PNI Extra 48 CB antenna with magnet included, 45cm, SWR 1.0 AM/FM switched only in the EU band

Product identification
Product code PNI-7120EX48
General characteristics of the radio station
Model Portable
Emission band type AM-FM
Frequency 26.965-27.405 MHz
channels 40 AM/FM
Microphone type RJ11
Speaker audio power 1W
Sensitivity (20dB SINAD) greater than 1 µV (AM/FM)
Emission power 4 W
Modulation 80 - 90%
Mounting 1 DIN Yes
feeding 12 V
Consumption 2A maximum
Dimensions / Weight 110 X 120 X 28 mm / 385 g
Special radio station features
Channel scan Yes
RF Gain Yes, 9 levels
Lock the keyboard Yes
Multicolor screen Yes
Emergency channel button 9/19 Yes
ASQ adjustable Yes, 9 levels
SQ - Squelch Yes, 28 levels
Automatic Digital Squelch (ASQ)
Operating temperature -26 C - +60 C
Additional speaker connection Yes
Characteristics of the radio antenna
Working frequency 26 - 28 Mhz
Maximum power applied 150 W
Minimum SWR in the center of the band 1.0
Antenna length 45 cm
Working distance 10 km
Impedance 50 Ohms
Material Fiber glass
Connector type PL259
Magnetic base included Yes
Magnetic base diameter 103 x 66 x 40 mm
Cable length 4 m
The package contains
CB radio station Yes
CB radio antenna Yes
Magnetic base Yes
Plug PL259 Yes
RG58 cable
Cigarette lighter plug Yes
Microphone support Yes
Station support Yes
RG174 cable Yes, 4 m


PNI-MIKE65 - PNI Mike 65 Bluetooth Microphone and Dongle, dual channel, compatible with PNI HP 6500, PNI HP 6550, PNI HP 7120

Product identification
Producer PNI
Product code PNI-MIKE65
Characteristics
Plug type RJ11
Bluetooth Yes
Frequency 2.4GHz
feeding Li-Ion battery 3.7V 1200mAh
Duration of operation Up to 8 hours
Compatibility PNI Escort HP 6500, PNI Escort HP 7120
Range Up to 10 m
size Microphone: 90 x 43 x 58 mm Dongle: 40 x 28 x 17 mm
Weight Microphone: 113 g (battery included) Dongle: 8 g
loudspeaker Yes, built in
The package contains
Microphone Yes
Dong Yes
USB cable Yes
Battery Yes, 1200mAh
User manual Yes



PNI-7120EX48
Lang Type Name Link
EU Declaration of Conformity Declaration of conformity EN-BG-DE-ES-FR-HU-IT-PL-RO Link
EU10 Declaration of Conformity Declaration of conformity EU9 Link
EU10 User manual User manual EU10 Link
