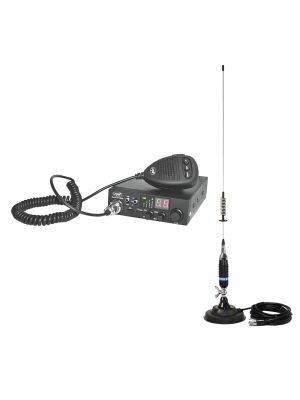

CB radio station package PNI Escort HP 8000L ASQ + CB antenna PNI Extra 40 with magnet

Be the first to review this product

£71.56

Availability: In stock

SKU

PNI-PAK28

Details

	ASQ Adjustable An innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band.
ASQ button on microphone For increased comfort at the wheel, PNI has positioned the automatic squelch activation/deactivation (ASQ) button on the microphone. In addition to this button, we also find up/down buttons on the microphone for changing channels, so you will no longer have to take your eyes off the road to operate these main functions.
	Small dimensions You can use the product in any car, as it is one of the smallest CB stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between the seats, without being inconvenient or disturbing.
Key lock switch The PNI Escort HP 8000L CB radio station has a switch on the front panel that allows you to select the emergency channel (19), the normal operating mode (CH) and activate the key lock function (L) , a useful function in situations where you want to avoid accidentally touching the station keys.

CB antenna PNI Extra 45 with magnet included SWR 1.0

Discreet and efficient

The PNI Extra 40 antenna is the smallest CB antenna (it has a height of only 44 cm - base included) that can be mounted on both cars and vans or minibuses. Its small dimensions make it almost unnoticeable, easily confused with the radio antenna. The average reception distance is 7 km.

Easy installation and calibration

The PNI Extra 40 antenna is easy to install, by simply screwing the spike onto the magnet fixed on the car's dome, but also to calibrate, by turning the screw on the spike, until the desired performance is obtained. It is recommended that the antenna adjustment/calibration be carried out by specialized personnel.

CB antenna PNI Extra 40 with magnet included SWR 1.0

Antenna performance

The PNI Extra 40 antenna has the characteristics of a large antenna: SWR 1.2:1, impedance 50 Ohms, frequency 26.8 - 27.6 MHz.

Video presentation

CB PNI Escort HP 8000L

The PNI Extra 40 antenna

Reviews

Technical specifications

Product identification
Product code	PNI-PACK28
General characteristics of the radio station
Exemplary	Furniture
Emission band type	AM-FM
Frequency	26.965-27.405 MHz
channels	40 AM/FM
Microphone type	6 pins
Audio signal distortion	less than 8% @ 1 KHz
Emission power	4W
Modulation	FM: 3KHz ± 0.2KHz, AM: 85-90%
feeding	12V
Consumption	second
Dimensions / Weight	115 x 36 x 152 mm / 0.8 kg
Special features of the radio station
ASQ (automatic squelch)	Yes
Keyboard lock	Yes
Emergency channel button 9/19	Yes
Adjustable ASQ	Yes
Radio antenna features
Working frequency	26.8 - 27.6 MHz
Maximum applied power	30W
Minimum SWR in the center of the band	less than 1.2:1
Antenna length	44 cm (base included)
Working distance	7 km
Impedance	50 Ohms
Material	Fiberglass
Connector type	PL259
Magnetic base included	Yes
Magnetic base diameter	90mm
Cable length	4m
The package contains
CB radio station	Yes
CB radio antenna	Yes
Magnetic base	Yes
