Kit CB radio PNI ESCORT CB 8024 ASQ + CB PNI S75 antenna with magnet

Kit CB radio PNI ESCORT CB 8024 ASQ + CB PNI S75 antenna with magnet

0001

CB TTi TCB-550 Radio Station Kit + PN100 ML100 antenna

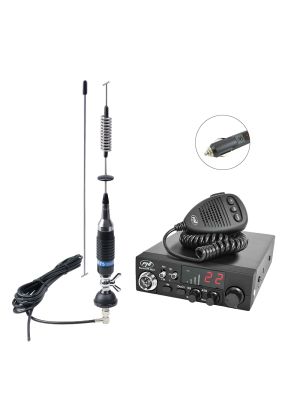

CB PNI ESCORT CB 8024 ASQ 12 / 24V radio CB + CB PNI Extra 45 magnet antenna

CB radio station kit and antenna.
£76.31
Availability: In stock
SKU
PNI-PACK11

Statie radio CB PNI Escort HP 8024 ASQ reglabil alimentare 12V-24V

Dual power supply 12V-24V DC

The PNI Escort HP 8024 CB radio station can be mounted on cars with 12V power supply, as well as on trucks or trucks with 24V power supply.

ASQ Adjustable

An innovation in the CB segment, the adjustable automatic squelch (ASQ) offers maximum comfort for even the most demanding users of automotive CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and interference from the CB band.

Statie radio CB PNI Escort HP 8024 ASQ reglabil alimentare 12V-24V

Statie radio CB PNI Escort HP 8024 ASQ reglabil alimentare 12V-24V

ASQ button on microphone

For increased driving comfort, PNI has positioned the automatic squelch (ASQ) on/off button on the microphone. In addition to this, we also find the up/down buttons for changing channels.

Key lock switch

The PNI Escort HP 8024 CB radio station has a switch on the front panel that allows you to select the emergency channel (19), the normal operating mode (CH) and activate the key lock function (L), a useful function in situations when you want to avoid accidentally touching the station keys.

Statie radio CB PNI Escort HP 8024 ASQ reglabil alimentare 12V-24V

Statie radio CB PNI Escort HP 8024 ASQ reglabil alimentare 12V-24V

Small

You can use the product in any car, as it is one of the smallest CB radio stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between seats, without inconveniencing or disturbing.

Discreet and efficient

The PNI Extra 45 antenna is the smallest CB antenna (it has a height of only 45 cm) that can be mounted on cars, vans or minibuses. Its small size makes it almost unnoticeable, easily confusing with the radio antenna. The average reception distance is 10 km.

Statie radio CB PNI Escort HP 8024 ASQ reglabil alimentare 12V-24V

Antena CB PNI Extra 45 cu magnet inclus

Easy installation and calibration

The PNI Extra 45 antenna is easy to mount, by simply screwing the spike on the magnet fixed to the car dome, but also to calibrate, by rotating the tip with a screw, until the desired performance is obtained. It is recommended that the antenna adjustment/calibration be performed by specialized personnel with the related equipment.

Anti-noise design

The PNI Extra 45 antenna has a special anti-noise design that allows air to slide around the ear, eliminating the noise produced by the wind.

Antena CB PNI Extra 45 cu magnet inclus



Write Your Own Review
You're reviewing:CB PNI ESCORT CB 8024 ASQ 12 / 24V radio CB + CB PNI Extra 45 magnet antenna
Your Rating
Product Identification
Product code PNI-PACK11
General characteristics of radio station
Pattern Furniture
Transmission band type AM-FM
Frequency 26.965-27.405 MHz
Channels 40 AM/FM
Microphone Type 6 pins
Speaker Audio Power 2 W
Audio Signal Distortion less than 8 % @ 1 KHz
Transmitting power 4 W+
Modulation FM: 1.8KHz ± 0.2KHz, AM: 85-95%
Power supply 12 -24 V
Consumption 2 A
Dimensions / Weight 115 x 36 x 152 mm / 0.8 kg
Special radio station features
ASQ (automatic squelch) Yes
Keyboard lock Yes
Emergency channel button 9/19 Yes
Adjustable ASQ Yes
Radio antenna features
Working frequency 26.965 - 27.405 Mhz
Number of channels 80
Maximum applied power 150 W
Minimum S.W.R. in the center of the band 1,0
Antenna length 45 cm
Working distance 7 km
Impedance 50 Ohms
Material Fiberglass
Connector Type PL259
Magnetic base included Yes
Magnetic base diameter 90 mm
Cable length 3m
The package contains
CB radio station Yes
CB Radio Antenna Yes
Magnetic base Yes



PNI-PACK11
Lang Type Name Link
EN User manual User manual Link
RO Declaration of Conformity DC&CG Link
RO User manual Manual utilizare Link

PNI-EXTRA45
Lang Type Name Link
EU10 Declaration of Conformity Declaration of conformity Link
EU10 User manual User manual EU10 Link
