CB PNI ESCORT HP 8001L ASQ radio station pack + CB PNI S75 antenna with cable and fixed mount

CB PNI ESCORT HP 8001L ASQ radio station pack + CB PNI S75 antenna with cable and fixed mount

CB PNI ESCORT HP 8024 ASQ radio station pack, 12-24 V, 40 channels, 4W + CB PNI ML70 antenna with magnet

CB PNI ESCORT HP 8024 ASQ radio station pack, 12-24 V, 40 channels, 4W + CB PNI ML70 antenna with magnet

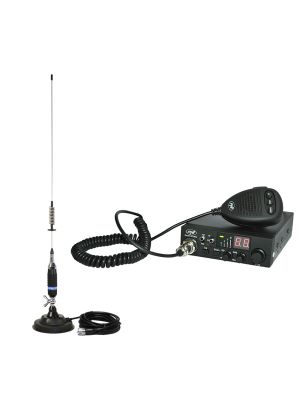

CB PNI ESCORT HP 8024 radio station package, 12V-24V ASQ + CB PNI S75 antenna with cable and fixed mount

CB PNI Escort radio station HP 8024 with dual 12V / 24V power supply and CB PNI S75 antenna with fixed mount.
£86.04
Availability: In stock
SKU
PNI-PACK76

PNI Escort HP 8024 CB radio station with ASQ

Dual 12V / 24V power supply

The CB PNI Escort HP 8024 radio station can be mounted both on cars with 12V power supply and on trucks or TIRs with 24V power supply.

ASQ Adjustable

An innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band.

PNI Escort HP 8024 CB radio station with ASQ

PNI Escort HP 8024 CB radio station with ASQ

ASQ button on microphone

For increased comfort behind the wheel, PNI has positioned the automatic squelch (ASQ) activation/deactivation button on the microphone. Besides this, we also find the up/down buttons for changing channels.

Key lock switch

The PNI Escort HP 8024 CB radio station has a switch on the front panel that allows the selection of the emergency channel (19), the normal operating mode (CH) and the activation of the key lock function (L), a useful function in situations where you want to avoid touching accidental pressing of the station keys.

PNI Escort HP 8024 CB radio station with ASQ

PNI Escort HP 8024 CB radio station with ASQ

Reduced dimensions

You can use the product in any car, because it is one of the smallest CB radio stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between the seats, without being uncomfortable or disturbing.

CB antenna performance

The performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.2:1, maximum applied power 250 W, impedance 50 Ohms, stainless steel, etc.

Butterfly CB PNI S75 antenna

Butterfly CB PNI S75 antenna

Communication distance

The communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the communication distance of 10 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance.

Antenna length

The length of the antenna is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the range of action. The antenna in this kit is 76 cm long.

Butterfly CB PNI S75 antenna

Butterfly CB PNI S75 antenna

Fixing accessories included

The PNI S75 antenna includes all the necessary accessories for mounting on the car: 4 m of RG58 cable, PL259 plug and mount for fixed attachment.

Adjustable angle

This antenna can be tilted with the help of the butterfly screw with which it is provided, to enter passages, garages or low-height parking lots. Apart from these situations, an inclination greater than 30 degrees is not recommended because it can affect the performance of the antenna.

Butterfly CB PNI S75 antenna

Write Your Own Review
You're reviewing:CB PNI ESCORT HP 8024 radio station package, 12V-24V ASQ + CB PNI S75 antenna with cable and fixed mount
Your Rating
Product identification
Product code PNI-PACK76
General characteristics of the radio station
Model Portable
Emission band type AM-FM
Frequency 26.965-27.405 MHz
channels 40 AM/FM
Microphone type 6 pins
Speaker audio power
Audio signal distortion less than 8% @ 1 KHz
Modulation FM: 3KHz ± 0.2KHz, AM: 85-90%
Mounting 1 DIN Yes
feeding 12 -24 V
Consumption Maximum 2A
Dimensions / Weight 115 x 36 x 152 mm / 0.8 kg
Special radio station features
ASQ (automatic squelch)
Channel scan
Lock the keyboard Yes
Emergency channel button 9/19 Yes
ASQ adjustable Yes
Operating temperature -26 C - +60 C
Characteristics of the radio antenna
Working frequency 26 - 28 Mhz
Maximum power applied 250 W
Minimum SWR in the center of the band less than 1.2:1
Antenna length Spike length: 54 cm
Working distance 10 km
Impedance 50 Ohms
Material Stainless steel
Cable length 4 m
The package contains
CB radio station Yes
CB radio antenna Yes
Plug PL259 Yes
RG58 cable Yes
Fixed mount Yes
Cigarette lighter plug Yes
Microphone support Yes
Station support Yes
Microphone Yes



PNI-HP8024
Lang Type Name Link
EU Declaration of Conformity Declaratie de conformitate EN, BG, DE, ES, FR, HU, IT, PL, RO Link
EU10 Declaration of Conformity Declaration of conformity EU9 Link
EU10 User manual User manual EU10 Link
RO Declaration of Conformity DC&CG Link
