CB Antenna PNI Extra 45

CB PNI Extra 45 antenna, with magnet included, length 45 cm, SWR 1.0, 26-30MHz, 150W, fiberglass

CB PNI Extra 40 antenna with magnet

CB PNI Extra 40 antenna, with magnet included, length 45 cm, 30W, 26-30MHz, SWR 1.0, fiberglass

CB PNI S75 antenna with butterfly, 26-28MHz, spike length 54 cm, magnet 125mm included

CB radio antenna with butterfly and magnetic base included.
£21.56
Availability: In stock
SKU
PNI-S75

PNI S9 CB antenna

CB antenna performance

The performance of the product is closely related to the technical characteristics of the antenna under ideal conditions of installation and use: SWR <= 1.2:1, maximum applied power 250 W, impedance 50 Ohms, stainless steel, etc.

Communication distance

The communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the communication distance of 10 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can lead to a decrease in this distance.

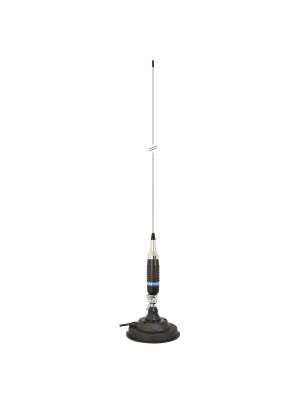

CB antenna PNI S9 length 120 cm

PNI S9 CB antenna

Antenna length

The length of the antenna is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the range. The antenna in this kit has a length of 76 cm (magnetic base included).

Magnetic base

The magnetic base in this package is equipped with a 4 m cable, long enough to place the antenna on the dome, and a diameter of 125 mm. The strong magnet gives the antenna stability even at very high speeds.

cb antenna pni

PNI S9 CB antenna

Adjustable angle

This antenna can be tilted using the included thumbscrew to enter low-height passages, garages, or parking lots. Outside of these situations, a tilt greater than 30 degrees is not recommended as it may affect the antenna's performance.

Video presentation

The CB PNI S75 antenna

Write Your Own Review
You're reviewing:CB PNI S75 antenna with butterfly, 26-28MHz, spike length 54 cm, magnet 125mm included
Your Rating
Product identification
Product code PNI-S75
Workband ? B
Product color (spike) Silver
General features
Working frequency 26 - 28 MHz
Number of channels
Maximum applied power 250W
Minimum SWR in the center of the band less than 1.2:1
Length 76 cm including base
Impedance 50 Ohms
Material Stainless steel
Connector type PL
Cable length 4m
Polarization vertically
Working distance 10 km
Operating temperature -26°C ~ +80°C
The package contains
Radio station antenna Yes
RG58 cable 4 m
PL259 plug Yes
Butterfly screw Yes
Magnetic base 125mm



PNI-S75
Lang Type Name Link
EU10 Declaration of Conformity Declaration of conformity EU10 Link
EU10 User manual User manual Link
