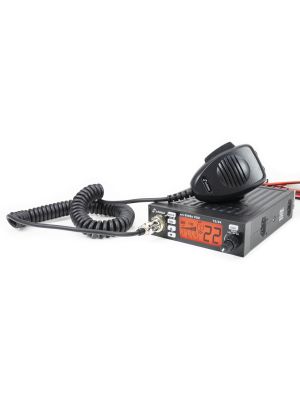

CB PNI radio station HP 8024 Escort with adjustable ASQ and 12V-24V power supply
Dual power supply 12V / 24VThe PNI Escort HP 8024 CB radio station can be mounted both on cars with 12V power supply, and on trucks or TIRs with 24V power supply. | |
ASQ AdjustableAn innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band. | |
ASQ button on microphoneFor increased comfort at the wheel, PNI has positioned the automatic squelch activation/deactivation (ASQ) button on the microphone. Next to it we also find the up/down buttons for changing channels. | |
Key lock switchThe PNI Escort HP 8024 CB radio station has a switch on the front panel that allows you to select the emergency channel (19), the normal operating mode (CH) and activate the key lock function (L), a useful function in situations where you want to avoid accidentally touching the station's keys. | |
Small dimensionsYou can use the product in any car, as it is one of the smallest CB radio stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between the seats, without being inconvenient or disturbing. | |
CB antenna performanceThe performance of the product is closely related to the technical characteristics of the antenna under ideal conditions of installation and use: SWR <= 1.2:1, maximum applied power 250 W, impedance 50 Ohms, stainless steel, etc. | |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the communication distance of 10 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can lead to a decrease in this distance. | |

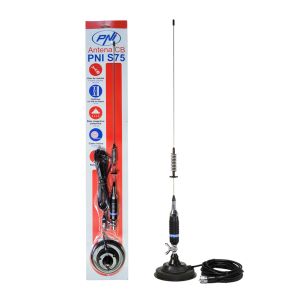

Antenna lengthThe length of the antenna is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the range. The antenna in this kit has a length of 76 cm. | |
Fixed mounting accessories includedThe PNI S75 antenna includes all the accessories necessary for mounting on the car: 4 m of RG58 cable, PL259 plug and fixed mounting bracket. | |
Adjustable angleThis antenna can be tilted using the included thumbscrew to enter low-height passages, garages, or parking lots. Outside of these situations, a tilt greater than 30 degrees is not recommended as it may affect the antenna's performance. |
Video presentation |
|
CB PNI Escort HP 8024 ASQ Escort radio stations |
Product identification | |
Product code | PNI-HP8024 |
General features | |
Frequency | 26.965-27.405 MHz |
Emission band type | AM-FM |
channels | 40 |
feeding | 12 - 24 V |
Dimensions (W x H x D / Weight) | 115 x 36 x 152 mm / 0.8 kg |
Microphone type (pins) | 6 pins |
Audio signal distortion | less than 8% @ 1 KHz |
Emission power | 4W+ |
Modulation | FM: 3KHz ± 0.2KHz, AM: 85-90% |
Current absorbed | second |
Exemplary | Furniture |
Special features | |
ASQ - Automatic Squelch | Yes |
Keyboard lock | Yes |
Emergency channel button 9/19 | Yes (CH 19) |
Adjustable ASQ | Yes |
Operating temperature | -26°C ~ +60°C |
Rear panel connections | |
Additional speaker connection | Yes |
The package contains | |
Radio station microphone | Yes |
Radio station | Yes |
Microphone holder | Yes |

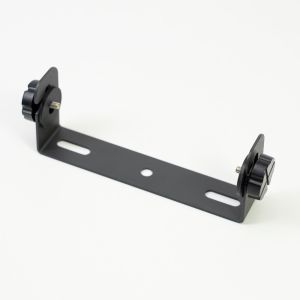

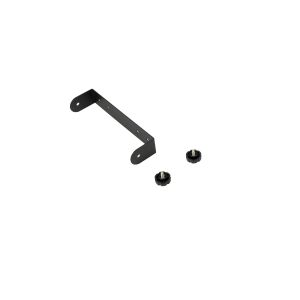

Station mounting bracket | Yes |
Power cable | Yes |
Cigarette lighter socket | Yes |
Manual in Romanian | Yes |
