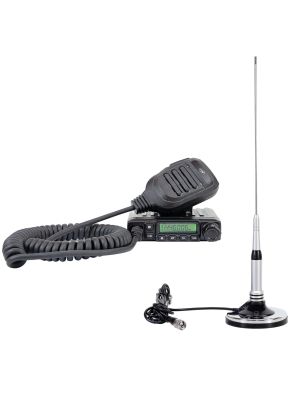

PNI Escort HP 446 UHF radio station package, 199 channels and PNI UF500 antenna with cable

UHF radio station PNI Escort HP 446, 199 channels, ASQ 9 levels, power 0.5W to 15W, NRC and UHF PNI UF500 antenna, 63 cm, 430-470 MHz with PNI T941 cable
£81.67
Availability: In stock
SKU
PNI-PACK120

PNI-HP446 - PNI Escort HP 446 UHF radio station, 199 channels, ASQ 9 levels, Scan, Dual Watch, CTCSS-DCS, power 0.5W to 15W, NRC function



PNI Escort HP 446 UHF radio station

UHF mobile radio station

The PNI Escort HP 446 is a communication tool within everyone's reach. Broadcasting on UHF radio frequencies is only possible on the basis of a license to use radio frequencies or a broadcasting license. Reception in the VHF/UHF radio spectrum is free.

Frequencies for amateur radio are used for non-commercial purposes, messaging, experimentation, self-training, private recreation, radio sports, etc.

The PNI Escort HP 446 operates in the 400-470MHz (UHF) frequency range.

Frequency Mode or Channel Mode

The PNI Escort HP 446 UHF radio works in frequency or channel mode. You can choose to display both working modes (FRQ), channel mode only (CH) or channel mode + channel name (NM) simultaneously on the screen.

PNI Escort HP 446 UHF radio station

PNI Escort HP 446 UHF radio station

Customizable features

PNI Escort HP 446 is a UHF station that offers maximum freedom to the user by customizing various functions: selectable emission power (15W/5W/0.5W), manual channel programming, frequency editing, scan mode selection, adding or excluding channels from scanning , call coding, 9-level adjustable squelch, frequency step selection, etc.

NRC (Noise Reduction Circuit) function

The PNI Escort HP 446 features a noise reduction circuit (NRC) that helps improve the quality of the received sound. Activate the NRC function from the station menu and you will immediately notice the difference. Together with the ASQ function (9 levels) you will get exceptional reception quality.

PNI Escort HP 446 UHF radio station

PNI Escort HP 446 UHF radio station

Compatible UHF antennas

The PNI Escort HP 446 UHF radio station can be used together with one of PNI's UHF antennas: PNI UF500 , 63 cm, with PNI T941 cable and PNI UF400 , 47 cm, with 120 mm magnetic base.

PNI-UF500 - PNI UF500 UHF antenna, 63 cm, 430-470 MHz, with PNI T941 cable



Radio antenna, UHF, PNI, 430 MHz, 470 MHz

UHF radio antenna

UHF radio antenna operating in the frequency range 430-470 MHz is suitable for both cars and trucks. It is also compatible with all UHF 430-470 MHz radio stations on the market.

The PNI UF500 offers maximum communication range and perfect omnidirectional coverage.

The PNI UF500 is also compatible with the PNI Escort HP 446 UHF radio station.

Mounting bracket included

The PNI UF500 antenna includes a boot edge mounting bracket for a secure fit. The stand is constructed of high-quality materials, glossy and with a galvanized metal coating to prevent corrosion.

The mounting bracket comes with a 5 meter RG58 coaxial cable and PL259 plug for connecting the antenna to the radio station.

For maximum performance of the PNI UF500 antenna mounted on the included bracket, a check and calibration of the antenna is required after attachment. Installation is incredibly easy.

Simply thread the Allen screws into the edge of the boot then route the coaxial cable into the car (through a window, door frame or hole) to connect to the radio.

Radio antenna, UHF, PNI, 430 MHz, 470 MHz

Radio antenna, UHF, PNI, 430 MHz, 470 MHz

Resistance to wear, bending and corrosion

The antenna wire is made of the best stainless steel, which resists bending and rust.

Also, the antenna coil has an anti-corrosion coating with excellent properties of resistance to external agents.

Write Your Own Review
You're reviewing:PNI Escort HP 446 UHF radio station package, 199 channels and PNI UF500 antenna with cable
Your Rating

PNI-HP446 - PNI Escort HP 446 UHF radio station, 199 channels, ASQ 9 levels, Scan, Dual Watch, CTCSS-DCS, power 0.5W to 15W, NRC function

Product identification
Product code PNI-HP446
Functions
Scan Yes
Timeout Timer Yes
BCL (Busy Channel Lockout) Yes
Squelch ASQ, 9 levels
Hi/Low power Yes
Dual watch Yes
Key lock Yes
Small Gain Yes
Transmit Indicator Yes
Signal Strength Yes
Monitor Yes
NRC (Noise Reduction Circuit) Yes
General characteristics
Frequency 400 - 470 MHz
Operating band UHF
Programmable channels 199 channels
Security codes 1024 DCS / 51 CTCSS
Step frequency 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 30 / 50 KHz
feeding 13.8 Vdc
Consumption ≤380mA in RX / ≤2600mA in TX
Power output 15W/5W/0.5W
size 110 x 110 x 25 mm
LCD screen Yes
The package contains
UHF radio station Yes
Microphone Yes
Power cable Yes
Mounting supports Yes
Cigarette lighter plug Yes
User manual Yes


PNI-UF500 - PNI UF500 UHF antenna, 63 cm, 430-470 MHz, with PNI T941 cable

Product identification
Product code PNI-UF500
General characteristics
Length 63 cm
Working frequency 430 - 470 MHz
Maximum power applied 400 W
Minimum SWR in the center of the band less than 1.5:1
Gain (Gain) 6 dBi
Radiation Omni
Connector type PL
Hole diameter 16 mm
Material Stainless steel
Weight 560 gr
Product color Silver
The package contains
RG58 cable 5 meters
4m RG58 cable with PC plug, Code T633 Not
Plug PL259 Yes
Butterfly screw SC 27, Code T441 Not
Antenna coupling plug LC 27, Code T370 Not
Midland FC 27 mount, Code T478 Not
3 dipoles Not
Antenna mounting bracket Not
10 mm metric screw Not
Magnetic base
Mounting support Yes



PNI-HP446
Lang Type Name Link
EU10 User manual User manual EU10 Link
RO Declaration of Conformity Declaratie de conformitate RO Link
