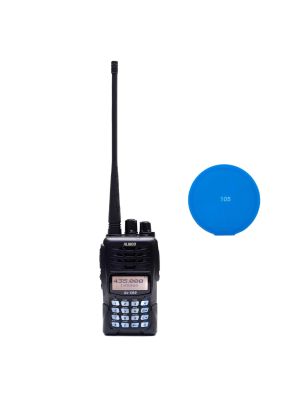

PNI Alinco DJ-MD5XEG portable VHF / UHF radio station

Portable VHF / UHF radio station PNI Alinco DJ- MD5XEG, DMR, 4000 channels, analog and digital mode

ICom IC-A16E portable VHF radio station

ICom IC-A16E VHF Portable Radio Station for Aviation 118,000–136,992 MHz, 2400 mAh, IP67

Portable VHF / UHF radio station PNI P15UV dual band, 144-146MHz / 430-440Mhz, 999CH, with 1500 mAh battery

VHF-UHF dual band radio station. Functions: VOX adjustable squelch, TOT, BCL, Roger Beep, Key sound, key lock, frequency range scan. Frequency range: 144-146MHz & 430-440MHz.
£25.48
Availability: In stock
SKU
PNI-P15UV

Portable VHF/UHF radio station PNI P15UV

Dual band VHF / UHF

The PNI P15UV is a communication tool within everyone's reach. Broadcasting on VHF and UHF radio frequencies is possible only on the basis of a license to use the radio frequencies or a broadcast license. Reception in the VHF/UHF radio spectrum is free.

Frequencies for radio amateurs are used for non-commercial purposes, exchange of messages, experimentation, self-training, private recreation, radio sports, etc.

PNI P15UV operates in the frequency range 144-146MHz (VHF) & 430-440MHz (UHV).

Frequency mode (VFO) or channel mode (MR)

The station works in several modes: UHF-VHF, VHF-VHF, UHF-UHF, in frequency mode or in channel mode. You can opt for the simultaneous display on the screen of both frequencies or channels (depending on the working mode).

Portable VHF/UHF radio station PNI P15UV

Portable VHF/UHF radio station PNI P15UV

Customizable functions

PNI P15UV is a dual band station that offers maximum freedom to the user by customizing various functions: selectable emission power (5W/1W), manual programming of channels, manual entry of frequency using the keyboard, selection of scan mode, adding or excluding channels from scanning, precise frequency scanning by entering a certain frequency range, encoding and decoding calls, SOS alarm (local, by code or sound), repeater tone selection, 9-level adjustable squelch, frequency step selection (2.5/5.0/6.25/ 10.0/12.5/20.0/25.0/50.0 KHz) etc.

Desktop charger included

Fix the PNI P15UV station in the office charger included in the package. Connect the charger's power supply to a 230V power source. During charging, the LED on the charger is red and turns green when the battery is fully charged.

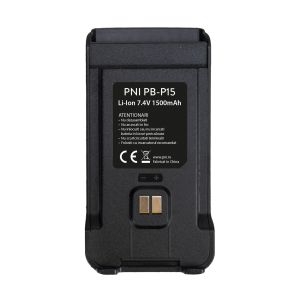

The 1500mAh Li-Ion battery can also be charged by direct connection to a power source through the micro USB Type-C port on the battery.

Portable VHF/UHF radio station PNI P15UV

Video presentation

Portable VHFUHF PNI P15UV dual band radio 144-146MHz / 430-440Mhz UK

Write Your Own Review
You're reviewing:Portable VHF / UHF radio station PNI P15UV dual band, 144-146MHz / 430-440Mhz, 999CH, with 1500 mAh battery
Your Rating
Product identification
Product code PNI-P15UV
Functions
Scan Yes
Timeout Timer Yes
BCL (Busy Channel Lockout) Yes
Expedite Yes
Squelch Yes
Hi/Low power Yes
DTMF Yes
Dual watch Yes
Key lock Yes
Signal Strength Yes
VOX Yes
General characteristics
Frequency VHF FM: 144-146 MHz; UHF FM: 430-440 MHz
Operating lane UHF-VHF
Programmable channels 999 channels
Security codes 50 CTCSS / 208 DCS
Step frequency 2.5/5/6.25/10/12.5/25KHz
feeding 7.5 Vdc
Consumption ≤380mA in RX / ≤1600mA in TX
Battery capacity 1500mAh Li-Ion
Antenna impedance 50 Ohms
Operating temperature -26 ~ +80 degrees C
Power output 5W
Audio output 1W @16 ohms
Weight 242 gr (antenna and battery included)
size 57 x 35 x 270 mm (antenna included)
FM commercial radio frequency 87.5 - 108 MHz
LCD screen Yes
Headphone connector 2 PNI-K pins
The package contains
UHF and VHF radio station
Portable UHF and VHF radio station Yes
Battery Yes
User manual Yes
Office charger Yes
Belt support Yes
Cord Yes
Programming cable



PNI-P15UV
Lang Type Name Link
EU10 Declaration of Conformity Declaration of conformity EU10 Link
EU10 User manual User manual EU10 Link
