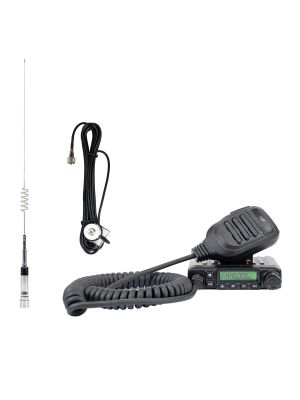

PNI Escort HP 446 UHF radio station package, 199 channels and PNI UF400 antenna with magnet
PNI-HP446 - PNI Escort HP 446 UHF radio station, 199 channels, ASQ 9 levels, Scan, Dual Watch, CTCSS-DCS, power 0.5W to 15W, NRC function
UHF mobile radio stationThe PNI Escort HP 446 is a communication tool within everyone's reach. Broadcasting on UHF radio frequencies is only possible on the basis of a license to use radio frequencies or a broadcasting license. Reception in the VHF/UHF radio spectrum is free. Ham radio frequencies are used for non-commercial purposes, messaging, experimentation, self-training, private recreation, radio sports, etc. The PNI Escort HP 446 operates in the 400-470MHz (UHF) frequency range. | |
Frequency Mode or Channel ModeThe PNI Escort HP 446 UHF radio works in frequency or channel mode. You can choose to display both working modes (FRQ), channel mode only (CH) or channel mode + channel name (NM) simultaneously on the screen. | |
Customizable featuresPNI Escort HP 446 is a UHF station that offers maximum freedom to the user by customizing various functions: selectable emission power (15W/5W/0.5W), manual channel programming, frequency editing, scan mode selection, adding or excluding channels from scanning , call coding, 9-level adjustable squelch, frequency step selection, etc. | |
NRC (Noise Reduction Circuit) functionThe PNI Escort HP 446 features a noise reduction circuit (NRC) that helps improve the quality of the received sound. Activate the NRC function from the station menu and you will immediately notice the difference. Together with the ASQ function (9 levels) you will get exceptional reception quality. | |
Compatible UHF antennasThe PNI Escort HP 446 UHF radio station can be used together with one of PNI's UHF antennas: PNI UF500 , 63 cm, with PNI T941 cable and PNI UF400 , 47 cm, with 120 mm magnetic base. |
PNI-UF400 - UHF antenna PNI UF400, 47 cm, 430-470 MHz, with magnetic base 120 mm
UHF radio antennaRadio antenna operating in the 430-470 MHz frequency range, suitable for both cars and trucks, compatible with all UHF 430-470 MHz radio stations on the market. Very easy to install thanks to the included magnetic base. Installed on the car dome, the PNI UF400 offers maximum communication range and perfect omnidirectional coverage. The PNI UF400 is compatible with the PNI Escort HP 446 UHF radio station. | |
Magnetic base 120 mmThe PNI UF400 antenna has a strong magnet, compact dimensions and 120 mm in diameter. The base is constructed of high quality materials, glossy ABS plastic and a galvanized metal coating to prevent corrosion. The magnetic base comes with a 4 meter RG58 coaxial cable and PL259 plug for connecting the antenna to the radio station. Magnetic base mobile antennas provide excellent performance when installed on the roof of a vehicle. Installation is incredibly easy. Simply place the magnet on the car dome and then route the coaxial cable into the car (through a window, door frame or hole) to connect it to the radio station. | |
Resistance to wear, bending and corrosionThe antenna wire is made of the best stainless steel, which resists bending and rust. Also, the antenna coil has an anti-corrosion coating with excellent properties of resistance to external agents. |
PNI-HP446 - PNI Escort HP 446 UHF radio station, 199 channels, ASQ 9 levels, Scan, Dual Watch, CTCSS-DCS, power 0.5W to 15W, NRC function | |
---|---|
Product identification | |
Product code | PNI-HP446 |
Functions | |
Scan | Yes |
Timeout Timer | Yes |
BCL (Busy Channel Lockout) | Yes |
Squelch | ASQ, 9 levels |
Hi/Low power | Yes |
Dual watch | Yes |
Key lock | Yes |
Small Gain | Yes |
Transmit Indicator | Yes |
Signal Strength | Yes |
Monitor | Yes |
NRC (Noise Reduction Circuit) | Yes |
General characteristics | |
Frequency | 400 - 470 MHz |
Operating band | UHF |
Programmable channels | 199 channels |
Security codes | 1024 DCS / 51 CTCSS |
Step frequency | 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 30 / 50 KHz |
feeding | 13.8 Vdc |
Consumption | ≤380mA in RX / ≤2600mA in TX |
Power output | 15W/5W/0.5W |
size | 110 x 110 x 25 mm |
LCD screen | Yes |
The package contains | |
UHF radio station | Yes |
Microphone | Yes |
Power cable | Yes |
Mounting supports | Yes |
Cigarette lighter plug | Yes |
User manual | Yes |
PNI-UF400 - PNI UF400 UHF antenna, 47 cm, 430-470 MHz, with 120 mm magnetic base | |
---|---|
Product identification | |
Producer | PNI |
Product code | PNI-UF400 |
Characteristics | |
Antenna type | 1/4 λ |
Work tape | UHF |
Frequency | 430-470 MHz |
Minimum SWR in the center of the band | less than 1.5:1 |
Maximum power supported | 400 W |
Impedance | 50 Ohms |
I earn | 6 dBi |
Polarization | |
Connector | PL |
Hole diameter | 22 mm |
Wire material | Stainless steel |
Length | 475 mm |
Package contents | |
Antenna | Yes |
Magnetic base | Yes, 120mm |
RG58 cable | Yes, 4 m |
Plug PL259 | Yes |
