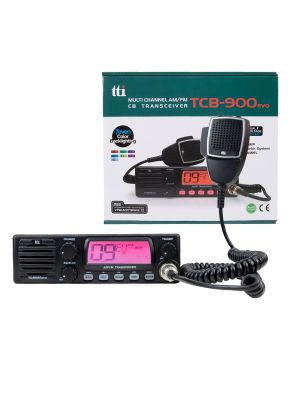

CB TTi TCB-900 EVO radio station with antenna

CB TTi TCB-900 EVO radio station kit + PNI ML160 CB antenna with magnet

CB TTi TCB-900 EVO radio station kit + PNI Extra 48 CB antenna with magnet

CB radio station TTi TCB-900 EVO, DSS, 4W, 12-24V, with CB antenna PNI Extra 48, 45cm with included magnet
£102.98
Availability: In stock
SKU
TTI-PACK76

PNI-TCB-900EVO - CB radio station TTi TCB-900 EVO, DSS, SQ, Dual Watch, Mic Gain, 12V-24V, Bluetooth dongle connector



DSS - Automatic Squelch

The CB TTi TCB-900 EVO radio station product is equipped with an automatic squelch system, also known as the extremely high-performance Dynamic Squelch System, which allows a very good filtering of conversations and receptions from CB (Citizen Band)

TTI-TCB-900-DSS

Dual Voltage

TCB-900-EVO-2

An advantage of this product is the dual power supply at both 12 V and 24 V, which allows the use in both cars and trucks, dump trucks, coaches that have a 24 V electrical installation.

Front speaker

The TTi TCB-900 EVO radio station is equipped with a front speaker, again an advantage if it will be mounted on the dashboard, or in the front panel of the cabin of a truck, trailer, or coach. Thus, the sound is heard clearly and strongly, in the direction of the user.

TCB-900-EVO-3

1 DIN format

TCB-900-EVO-4

The case format is 1 DIN, identical to classic car cassette players. Thus, it fits in the specially designed spaces for them, which can be found both in passenger cars, as well as in trucks, dump trucks and coaches.

Multi-Band

Now radio amateurs can also benefit from the advantages of this product, the TTi TCB-900 radio station having 11 bands usable in Europe and beyond.

TCB-900-EVO-5

VOX function

TCB-900-EVO-8

The VOX function with which this station is equipped allows hands-free communication with the microphone capturing the voice from a distance. The function is also accompanied by a very useful sensitivity adjustment in case the distance to the microphone varies.

Special functions

The TTi TCB-900 EVO radio station has, in addition to the classic functions, a series of special functions that can help in using the product, such as: ATT, Mute, Lock, BL, + a special menu with some additional settings.

TCB-900-EVO-6

Ready to use

TCB-900-EVO-7

The TTi TCB-900 EVO radio station allows immediate use. All you have to do is attach a calibrated antenna to it, connect it to the car cigarette lighter socket or directly to the battery and turn it on on channel 22. The product comes with a station support, microphone support and mounting screws.

PNI-EXTRA48 - PNI Extra 48 CB antenna, with included magnet, 45 cm, 26-30MHz, 150W, SWR 1.0, fiberglass



Discreet and efficient

The PNI Extra 48 antenna is among the smallest CB antennas (it is only 45 cm high) and can be mounted both on cars, vans and minibuses. Its small dimensions make it almost imperceptible, easily confusing with the radio antenna. The average reception distance is 10 km.

CB antenna PNI Extra 45 with magnet included SWR 1.0

CB antenna PNI Extra 45 with magnet included SWR 1.0

Aerodynamic design

The PNI Extra 48 antenna has a special anti-noise design that allows the air to slide around the spike, eliminating the noise produced by the wind.

Write Your Own Review
You're reviewing:CB TTi TCB-900 EVO radio station kit + PNI Extra 48 CB antenna with magnet
Your Rating

PNI-TCB-900EVO - CB radio station TTi TCB-900 EVO, DSS, SQ, Dual Watch, Mic Gain, 12V-24V, Bluetooth dongle connector

Product identification
Producer TT
Product code PNI-TCB-900EVO
Product type CB radio station
General characteristics
Model Portable
Emission band type AM/FM
channels 40
Frequency 26.965 - 27.405 MHz
Microphone type (pins) 6 pins
Speaker audio power 2W
Sensitivity (20dB SINAD) 0.7㎶ for 10dB (S+N)/N in AM mode / 0.7㎶ for 20dB SINAD in FM mode
Audio signal distortion less than 8% @ 1KHz
Emission power 4 W
feeding 12 V / 24 V
Absorbed current max. 1.6A
Dimensions (W x H x D / Weight) 170 x 90 x 50 mm / 764 gr
1DIN assembly Yes
Special features
Dual Watch Yes
Channel scan Yes
Small Gain Yes
ASQ Yes
Lock the keyboard Yes
LCR - the last selected channel Yes
ASQ adjustable
Emergency channels Yes
Multicolor screen Yes
VOX Yes
Manual squelch Yes
Accessory connection 1 pin plug
Operating temperature -26°C ~ +80°C
Key sound Yes
PTT (Push To Talk) Yes
Screen lighting Yes
Key lighting Yes
Rear panel connections
Additional speaker connection Yes
Bluetooth dongle connection Yes
The package contains
Radio station Yes
Microphone Yes
Support and screws for holding the radio station Yes
Microphone support and screws Yes
Power cord Yes
Cigarette lighter plug Yes
User manual Yes
1DIN mounting case


PNI-EXTRA48 - PNI Extra 48 CB antenna, with included magnet, 45 cm, 26-30MHz, 150W, SWR 1.0, fiberglass

Product identification
Product code PNI-EXTRA48
Work tape ? B
Product color (spike) Black
General characteristics
Working frequency 26 - 30 MHz
Maximum power applied 150W
Minimum SWR in the center of the band 1.0
Length 45 cm (magnetic base included) Spike length: 44 cm
Impedance 50 Ohms
Material Fiber glass
Connector type PL
Cable length 4 m
Weight 193 g
size 450 x 103 x 66 mm
I earn >5 dBi
Polarization vertically
Working distance 10 km
Magnetic base 103 x 66 x 40 mm
Operating temperature -26°C ~ +80°C
The package contains
Radio station antenna Yes
RG174 cable Yes, 4 m
Plug PL259 Yes
