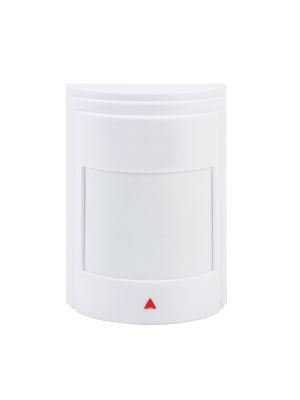

Wired PIR motion sensor PNI SafeHouse HS140 for alarm systems compatible with PNI HS600 and PNI HS650

PIR (passive infrared) sensor

Through infrared radiation detection technology, the PNI SafeHouse HS140 sensor , after detecting movement (detection up to 12 meters / 110°), sends an alarm signal through the wire to the central unit of the alarm system, and the central unit will issue an alarm sonorous.

The user will receive an SMS or a notification in the application on the mobile phone with details of the triggered alarm.

Note: The behavior of the alarm system when a sensor is triggered differs from one alarm system to another.

High sensitivity, no false alarms and anti-EMI protection

The PNI SafeHouse HS140 wired motion sensor is equipped with a passive wide-angle infrared sensor, chip
SMT, anti-EMI (electromagnetic interference) and anti-RFI (radio frequency interference) design, automatic temperature compensation function and tamper (anti-sabotage) function.

The sensor has selectable functions (sensitivity adjustment, output relay select, LED indicator operating mode select) and can be added to a wired alarm system in residential or industrial applications.

Simple installation

The PNI SafeHouse HS140 wired motion sensor is very easy to install on the wall or ceiling.

Easy to install, easy to connect, no tools required, can be installed and connected in just minutes.

PNI SafeHouse HS140 is compatible with PNI SafeHouse HS550, PNI SafeHouse HS600, PNI SafeHouse HS650 alarm systems.

Attention: PNI SafeHouse HS140 requires an independent 9-16V power supply. Alarm systems usually do not have power on wired connectivity.
