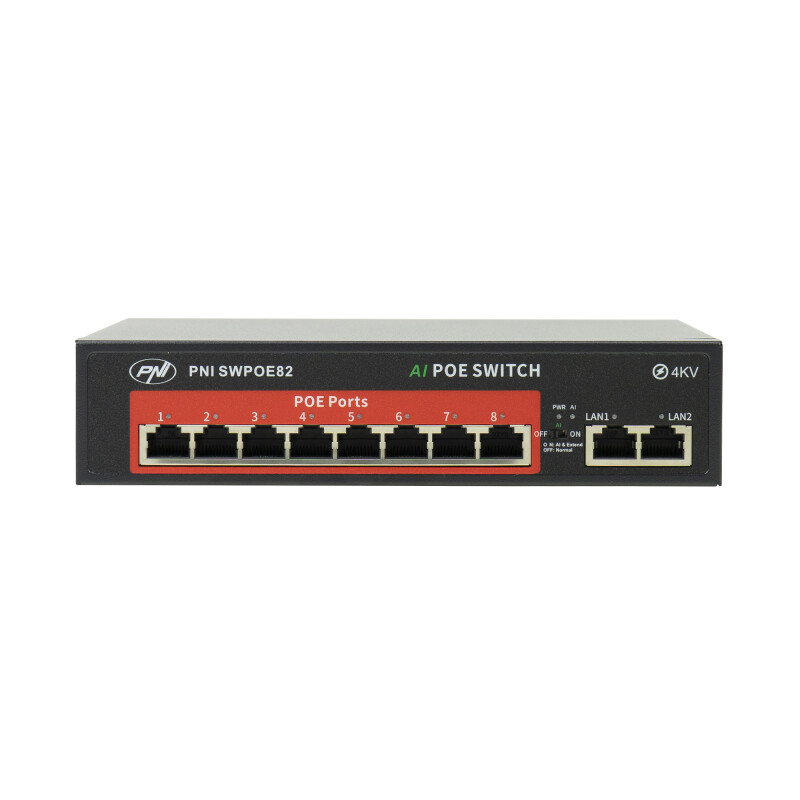

POE Switch PNI SWPOE82 8 POE 100 Mbps ports and 2 UP Link 100 Mbps ports, 120W, AI Extend function up to 250m, 4kV lightning protection

Switch POE PNI SWPOE82, 8 POE 100 Mbps ports and 2 UP Link 100 Mbps ports, 120W, AI Extend function up to 250m, 4kV lightning protection

£30.93

Availability: In stock

SKU

PNI-SWPOE82

Details

	PoE switch (Power over Ethernet) The PNI SWPOE82 PoE switch is a network device that allows both data transfer and power supply to devices connected via the same Ethernet cable. PoE switches are frequently used in video surveillance networks and, in general, in modern IT systems.
AI Extend function The AI Extend function allows the transmission distance to be extended up to 250 meters, making it perfect for situations where cables need to cover distances greater than the standard 100m limit.
	Connectivity capabilities 8 PoE ports with 100 Mbps speed – These are standard Ethernet ports that allow both 100 Mbps data transfer and powering connected devices. 2 x 1000Mbps UP Link Ports – These are dedicated ports for connecting the switch to other network equipment, such as a router, another switch, or a server. Unlike PoE ports, these do not provide power, but they have a higher data transfer speed.
Practical usage scenarios The switch can be effectively used in offices, commercial buildings, or in video surveillance solutions, where multiple cameras require power and connectivity simultaneously. It is also ideal for installing wireless access points in large spaces, allowing for better signal coverage. Regardless of the situation, this switch offers flexible and high-performance solutions.

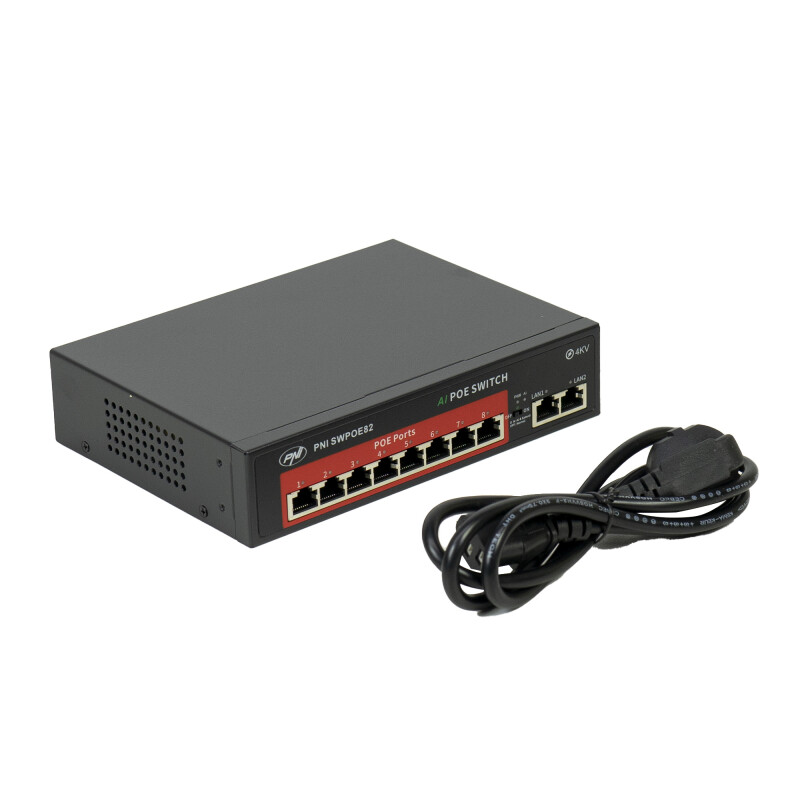

	Simple and quick installation Installing the PNI SWPOE82 switch is a simple process, involving connecting the power cable and network cables. The kit includes all the necessary components, including a detailed manual for guidance. It integrates easily with various building automation ecosystems, providing quick and efficient configuration, without requiring advanced technical knowledge.

Video presentation

Switch POE PNI SWPOE82 8 porturi POE

Instaling SWPOE82 and PNI IP816

Reviews

Technical specifications

Features
Number of ports	8 x POE 100 Mbps + 2 x 100 Mbps LAN
Transfer rate	10/100 Mbps
Connector type	RJ-45
Supported Standards	IEEE 802.3 Ethernet Media Access Control Protocol; IEEE 802.3i 10BASE-T Ethernet; IEEE 802.3u 100BASE-TX Fast Ethernet; IEEE 802.3af; IEEE 802.3t; IEEE 802.3x.
Bandwidth	1.2G
Data transfer rate	Ethernet 10Mbps half duplex, 20Mbps full duplex; Fast Ethernet 100Mbps half duplex, 200Mbps full duplex;
Maximum transfer distance	100Base-TX:2 CAT5 or higher UTP/STP (≤ 100m); 10Base-TX:2 CAT5 or higher UTP/STP (≤ 250m);

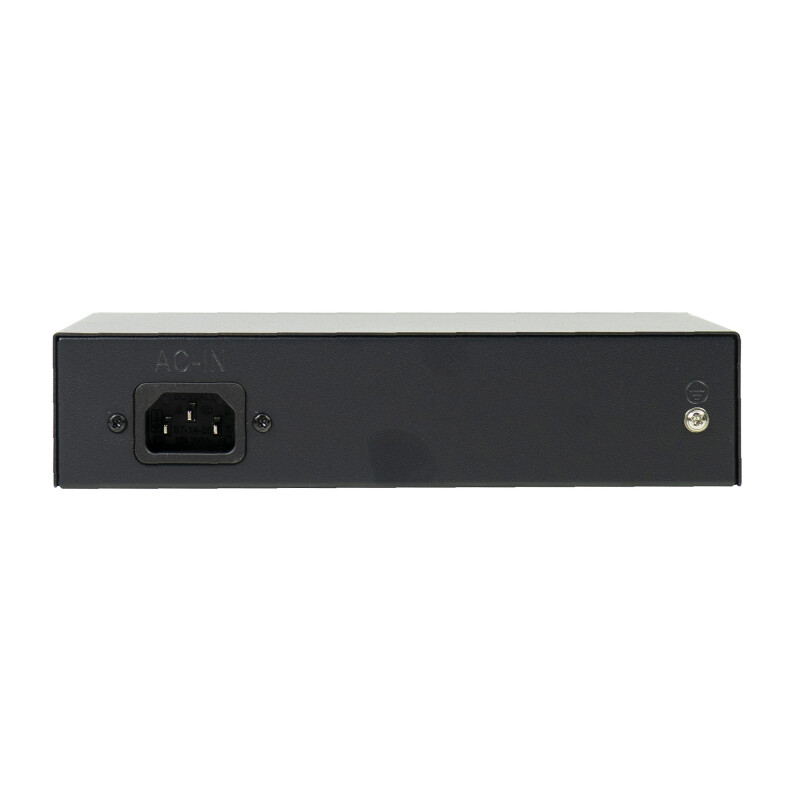

Supply voltage	100-250V 50/60Hz
Dimensions	190 X 140 X 45 mm
Weight	822 gr
Ambient temperature	-26°C ~ +80°C
PoE Standard	8 x POE 100Mbps
PoE power supply mode	52V DC max. 120W (total); 30W (per port)
Lightning protection	4KV
MAC	2K
Package contains
Power cable	Yes
Switch	Yes
Manual	Yes
