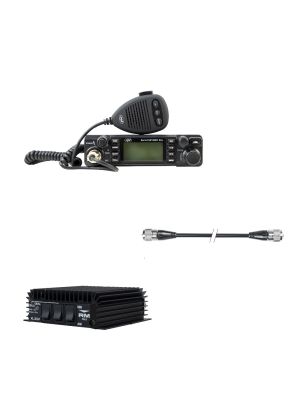

CB radio station package PNI Escort HP 9500, RX-TX KL203P amplifier, AM-FM-SSB, 100W, 12V and PNI R50 cable
PNI-HP9500 - PNI Escort HP 9500 multistandard CB radio station, front speaker, ASQ, VOX, Scan, 4W, AM-FM, 12V/24V power supply, cigarette lighter plug included
| An excellent product equipped with everything necessary to communicate in the CB bandPNI Escort HP 9500 is a reliable CB station that ensures clear communication over long distances. With AM and FM operation, multi-standard, 5-level automatic Squelch and adjustable Squelch, large multi-color illuminated screen, the HP 9500 is equipped with all the basic functions necessary for CB band communication. On the front panel it has a 2-pin Kenwood type connector for using the station in hands-free mode. |
Multi-band CB stationThe PNI Escort HP 9500 CB station allows communication in the main European frequency bands. Set the standard corresponding to the country you are in by simply pressing the MODE/BAND key. The selected band (UK, EU, DE) will be displayed on the screen throughout the use of the station. |
|
| Ultra-compact design, front speaker, 1 DIN mountingThe PNI Escort HP 9500 has a robust, compact design making this station easy to place in any space in the car. The package includes a 1 DIN housing for mounting the station in the car dashboard. The HP 9500 is a reliable companion for drivers of cars, trucks and vans. |
Cigarette lighter plug includedThe PNI Escort HP 9500 CB station is powered by a voltage of 12V or 24V. The detachable power cable and cigarette lighter plug required for power are included in the package. |
|
Video presentation |
|
CB PNI Escort station HP 9500 ENG |
| Product Identification | |
| Product code | PNI-PACK146 |
| General characteristics of the radio station | |
| Model | Furniture |
| Emission band type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| Channel | 80 FM / 40 AM |
| Microphone type | 6 pins |
| Speaker Audio Power | 3 W |
| Sensitivity (20dB SINAD) | less than 0.5 μV (AM/FM) |
| Audio Signal Distortion | less than 5% @ 1 KHz |
| Emission power | 4 W |
| Power | 12 -24 V |
| Consumption | max. 1.8A |
| Dimensions / Weight | 187 x 56 x 85 mm / 786 g |
| Special features of the radio station | |
| ASQ (Automatic Squelch) | Yes |
| Channel Scan | Yes |
| Keypad lock | Yes |
| Additional speaker connection | Yes |
| Radio antenna features | |
| Frequency of work | |
| Maximum power applied | |
| Minimum S.W.R. in the center of the lane | |
| Antenna length | NA |
| Working distance | |
| Impedance | |
| Material | |
| Connector Type | |
| Hole diameter | |
| Magnetic base included | |
| Diameter of the magnetic base | NA |
| Cable length | |
| Earning | |
| Polarization | |
| The package contains | |
| CB Radio Station | Yes |
| CB radio antenna | |
| Magnetic base | |
| PL259 Plug | |
| RG58 Cable | Yes, 0.5 m |
| Power Cable Station | Yes |
| Fixed clamp mount | Yes |
| Lighter Plug | Yes |
| Microphone support | Yes |
| Station support | Yes |
| Headphones | Yes, cable 150 cm |
| Microphone | Yes |
| User Manual | Yes |
| Radio Amplifier | Yes |
