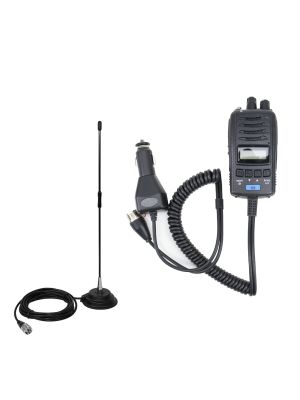

CB TTi TCB-H100 Radio Station Kit + CB Antenna PNI Extra 48
PNI-TCB-H100 - TTi TCB-H100 Portable CB Radio Station, 12V/24V Power Supply, Roger Beep, Squelch
|
|
Portable CB Radio StationSimilar to a walkie-talkie in its dimensions and portable design, the TB TTi TCB-H100 CB radio station retains all the characteristics of a CB radio station: 26-28MHz frequency range, 4W transmit power, AM/FM modulation, 12V or 24V power supply. |
Dual power supplyThe CB TTi TCB-H100 radio station can be powered both at 12V or 24V through the car adapter included in the package, and at 7.4V through the Li-Ion battery available in the TTi H100 accessory package that can be purchased separately. |
|
|
|
FunctionsThe CB TTi TCB-H100 radio station has been created taking into account the basic needs of a CB band user: DSS (Dynamic Squelch Tuning System) - the station's squelch is dynamically adjusted to an optimal level to achieve the best reception; Adjustable squelch - which reduces background noise to a minimum; Channel scanning; Key lock; Sound keys; Echo function on the broadcast; Roger beep (an acoustic signal at the end of the broadcast); Vox (transmission without pressing the PTT button); Emission signal power (S-RF) display. |
Multi Norm CB Radio StationBy pressing the MENU button (P1) on the station you can access the settings menu that allows you to activate and deactivate the station's functions, as well as select the norm. By selecting one of the 10 available standards (EC, EU, d, I1, I, EU, UK, PL, F and E) you can use the TTi TCB-H100 station anywhere in Europe. |
|
|
|
Optional accessory packageThe optional TTi H100 accessory package (product code PNI-AK-H100) includes a 2600mAh Li-Ion battery, a desktop charger, BNC antenna and belt clip. The TTi TCB-H100 station thus becomes portable, allowing it to be used outside the vehicle. |
PNI-EXTRA48 - CB antenna PNI Extra 48, with magnet included, 45 cm, 26-30MHz, 150W, SWR 1.0, fiberglass
Discreet and efficientThe PNI Extra 48 antenna is among the smallest CB antennas (it has a height of only 45 cm) and can be mounted on cars, vans or minibuses. Its small size makes it almost unnoticeable, easily confusing it with the radio antenna. The average reception distance is 10 km. |
|
|
|
Aerodynamic designThe PNI Extra 48 antenna has a special anti-noise design that allows air to slide around the ear, eliminating wind noise. |
PNI-TCB-H100 - TTi TCB-H100 portable CB radio station, 12V/24V power supply, Roger Beep, Squelch | |
|---|---|
| Product identification | |
| Producer | TT |
| Product code | PNI-TCB-H100 |
| General features | |
| Exemplary | Portable |
| Emission band type | AM/FM |
| channels | 40 |
| Frequency | 26.56 - 28.00 MHz |
| Speaker audio power | 1W |
| Sensitivity (20dB SINAD) | 1.4㎶ for 10dB(S+N)/N in AM; 0.8㎶ for 20dB SINAD in FM |
| Audio signal distortion | less than 8% @ 1KHz |
| Emission power | 4W |
| Hi/Low power selection | Yes |
| Modulation | FM: 1.8KHz ± 0.2KHz, AM: 85-95% |
| feeding | 12V/24V (via adapter) or 7.4V (via Li-Ion battery) |
| Current consumption | max. 1.6A |
| Dimensions (W x H x D / Weight) | 57 X 35 X 120 mm / 224 g |
| Special features | |
| Channel scan | Yes |
| Keyboard lock | Yes |
| Emergency channels | Yes |
| Roger Beep | Yes |
| Echo function | Yes |
| SWR meter | |
| VOX | Yes |
| Manual squelch | Yes |
| and meter | Yes |
| Accessory connection | 2-pin PNI-M plug |
| Low battery indicator | Yes |
| Operating temperature | -26°C ~ +80°C |
| Key sound | Yes |
| Front panel connections | |
| 2-pin jack | Yes |
| The package contains | |
| Radio station | Yes |
| User manual | Yes |
| Antenna and 12 V power adapter | Yes |
| Battery | |
| Battery charging support | |
PNI-EXTRA48 - CB antenna PNI Extra 48, with magnet included, 45 cm, 26-30MHz, 150W, SWR 1.0, fiberglass | |
|---|---|
| Product identification | |
| Product code | PNI-EXTRA48 |
| Work tape | ? B |
| Product color (spike) | Black |
| General features | |
| Working frequency | 26 - 30 MHz |
| Maximum applied power | 150W |
| Minimum SWR in the center of the band | 1.0 |
| Length | 45 cm (magnetic base included) Spike length: 44 cm |
| Impedance | 50 Ohms |
| Material | Fiberglass |
| Connector type | PL |
| Cable length | 4m |
| Weight | 193g |
| size | 450 x 103 x 66 mm |
| Gain | >5 dBi |
| Polarization | vertically |
| Working distance | 10 km |
| Magnetic base | 103 x 66 x 40 mm |
| Operating temperature | -26°C ~ +80°C |
| The package contains | |
| Radio station antenna | Yes |
| RG174 cable | Yes, 4 m |
| PL259 plug | Yes |
