Automatic car parking lock PNI PL20 with solar charging, remote control, keys and battery
| OverviewPNI PL20 is an automatic parking space blocker, designed to prevent unauthorized parking in reserved or private spaces. This mechanical-electronic equipment provides effective protection of parking spaces through a solid arm that raises and lowers in a controlled manner, either automatically by remote control or manually with a key. The product is intended for outdoor use and is robustly built to withstand varied environments and high mechanical stress. |

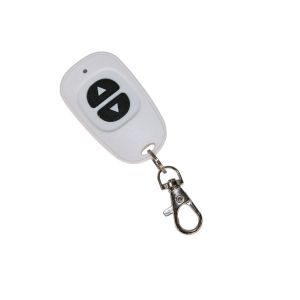

Features and functionalityThe blocker is made of durable steel and offers a durable solution for protecting a parking space. When the arm is raised, it creates a physical barrier that prevents unauthorized vehicles from entering. Operation is via radio remote control, with an operating distance typically up to approximately 15 m, allowing remote activation of the mechanism. The design also allows for manual control with a key, useful in situations where the remote control is not available or the battery is discharged. |
|
| Solar power and batteryThe PNI PL20S is equipped with solar power and an internal battery, which allows it to operate independently of a permanent electrical power source. The integrated solar panel collects light energy from the sun and converts it into electrical energy, which is stored in the approximately 4,000 mAh and 4 V lead-acid battery. |
Installation and how to useThe installation of the PNI PL20 is done on flat surfaces, such as asphalt or concrete, using suitable anchor bolts. The locking arm must be fixed vertically when in the raised position, to block the parking space, and lowered when the space is used. The remote control is paired with the main unit, and the user can raise or lower the arm remotely. In addition, there is the option of manual operation with a key for special situations (for example, low battery or remote control failure). |
|
| Product identification | |
| Producer | NIP |
| Product code | PNI-PL20 |
| Features | |
| Material | Steel |
| Control distance | ≤15m |
| Detection distance | |
| Arm lift/lower time | 3 - 4 seconds. |
| Product height with arm raised | 400mm |
| Product height with arm lowered | 80mm |
| Working temperature | -26 ~ 80°C |
| feeding | 4V 4000mAh lead-acid battery |
| Standby consumption | 1mA |
| Consumption at work | 1.2M |
| Dimensions / Weight | 445 X 455 X 75 mm / 3.7 kg |
| Water resistance class | IP67 |
| Functions | |
| Anti-collision system | Yes, 180° |
| Automatic opening | Yes |
| Pressure resistance | Supports 2 tons |
| Anti-theft system | Yes |
| Low battery warning | Yes |
| Package contents | |
| lock | Yes |
| Remote control | 2 pcs. |
| Key | Yes, 2 pcs. |
| Mounting screws | Yes |
| Charger | Yes |
| Battery | 4000mAh lead acid battery |
