Automatic car parking lock PNI PL10 with remote control, keys and batteries
| Locking/parking devicePNI PL10 is a remote-controlled automated parking/locking device designed to secure a private or residential parking space. This mechanical-electronic system prevents unauthorized occupancy of a parking space by raising a solid steel arm when activated and lowering it when not in use. The robust housing with IP67 protection ensures water and dust resistance, and the compact design allows for easy installation on flat surfaces such as asphalt or concrete. |
Features and functionalityThe device operates with 3 D-cell batteries (LR20) for internal motor power, eliminating the need for a permanent external power supply with an electric cable. The arm raises and lowers in a few seconds (generally 3–4 seconds), and the entire mechanism can withstand a force of up to 2000 kg in the lowered position, making it stable and durable in use. The operating range of the remote control is up to about 15 m, sufficient for regular use in the car. |
|
| The role in securing the parking spaceThe PNI PL10 offers a convenient way to reserve and protect a parking space, whether it is private property, a parking space behind a building or a company parking space. By raising the arm, the device creates a physical barrier that discourages unauthorized parking, and lowering it allows quick access. This solution is also useful for areas where there are no automatic gate-type barriers, as it can operate independently, only via radio remote control. |

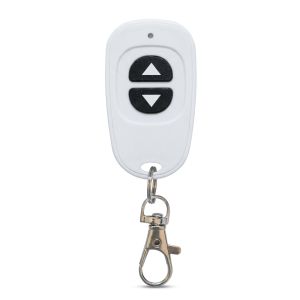

Operation and useOperation is simple, by pressing the buttons on the remote control, which communicates with the main unit via radio signal at approximately 433 MHz. The device is capable of retaining up to 10 associated remote controls, providing flexibility for use by multiple authorized users. In cases of battery depletion, there is also a manual control option, allowing the arm to be raised or lowered without using the remote control. |
|
| Product identification | |
| Producer | NIP |
| Product code | PNI-PL10 |
| Features | |
| Material | Steel |
| Control distance | ≤15m |
| Detection distance | |
| Arm lift/lower time | 3 - 4 seconds. |
| Product height with arm raised | 400mm |
| Product height with arm lowered | 80mm |
| Working temperature | -26 ~ 80°C |
| feeding | 3 D-cell alkaline batteries (LR20) 1.5V |
| Standby consumption | 1mA |
| Consumption at work | 1.2M |
| Dimensions / Weight | 445 x 455 x 75 mm / 3.7 kg |
| Water resistance class | IP67 |
| Functions | |
| Anti-collision system | Yes, 180° |
| Automatic opening | Yes |
| Pressure resistance | Supports 2 tons |
| Anti-theft system | Yes |
| Low battery warning | Yes |
| Package contents | |
| lock | Yes |
| Remote control | 2 pcs. |
| Key | Yes, 2 pcs. |
| Mounting screws | Yes |
| Batteries | 3 D-size alkaline batteries |
