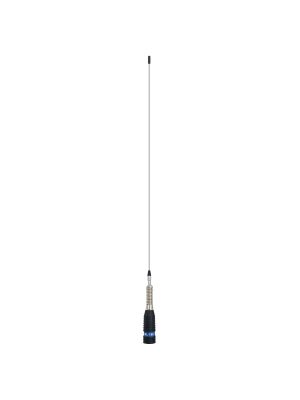

Antenna CB PNI ML160 length 145 cm with T941 cable holder
£25.99
Availability: In stock
SKU
PNI-ML160T941

PNI ML160 Performance

performances

The performance of the product is closely related to the technical characteristics that the antenna has in ideal conditions of installation and use: SWR <1.1, maximum applied power 600 W, impedance 50 Ohms, stainless steel, etc.

Communication distance

The communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the maximum communication distance of 15 km or even more is achieved under ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance.

PNI ML160 Communication distance

PN ML 160 Communication distance

Length

The length of the antenna is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the communication distance / range. In this case 145 cm.

Batch

This antenna is ready for assembly with: antenna and Allen key for calibration in the package. All you have to do is mount it on a magnetic base, or on a fixed mount, connect it to a CB radio station and calibrate it to use it at maximum performance.

PNI ML160 Package

Compatibility

The PNI T941 support can be used for mounting in a fixed position a PL type antenna, similar to the one in the attached image.

compatibility

Cable length

cable length

The length of the cable is 5m, thus allowing you to mount the antenna on the trunk of the vehicle and still be able to make the connection with the CB radio station.

Cable

The cable used is of very good quality RG58 coaxial type with maximum performance in terms of emission and reception.

cable

Video presentation

The CB PNI ML160 Antenna

Write Your Own Review
You're reviewing:Antenna CB PNI ML160 length 145 cm with T941 cable holder
Your Rating
Product identification
Work tape ? B
Product color (spike) Silver
General characteristics
Working frequency 25 - 30 MHz
Number of channels 90
Minimum SWR in the center of the band 1.0
Length 145 cm
Impedance 50 Ohms
Material Stainless steel
Connector type PL
Hole diameter 16 mm
Weight 280 g
size 168x10x4 cm
The package contains
Radio station antenna Yes
Support for holding the antenna Yes



PNI-ML160FC
Lang Type Name Link
EU10 User manual User manual EU9 Link
