AHD PNI House PTZ1500 5MP video surveillance kit - DVR and 4 outdoor cameras

Video surveillance kit, 5MP AHD DVR and 4 5MP outdoor cameras.
£197.18
Availability: In stock
SKU
PNI-PTZ1500

AHD PNI House PTZ1500 video surveillance kit

5MP AHD surveillance system

The AHD PNI House PTZ1500 surveillance kit includes 4 cameras with outdoor or indoor mounting with a resolution of 5MP (2500 x 1920px). The cameras have 36 IR LEDs that ensure visibility at night at a distance of up to 40 meters. The metal casing and IP66 water protection class ensure the camera's resistance to external conditions (humidity and dust). The cameras connect to the DVR via the included video and power cable. The 5MP resolution guarantees great image clarity, contrast and details. You can easily recognize people's faces, registration numbers or other eloquent details from the protected space.

Software

The PNI House PTZ1500 system can be controlled locally or remotely from both
smartphone as well as from computers with Windows operating system. Download the XMEye application for Android and iOS or General CMS for Windows. The installation file can be downloaded from the CD included in the package or from the Download section on the product web page.

AHD PNI House PTZ1500 video surveillance kit

AHD PNI House PTZ1500 video surveillance kit

Simultaneous real-time surveillance through the HDMI and VGA video outputs

Connect a monitor to the HDMI (maximum 4K) or VGA (maximum 1080P) output of the DVR and you can watch in real time everything that happens in the protected space. Also, through the monitor, access the DVR menu and make the necessary system settings, update the firmware or manage users.

Audio and video recording, H.265+ video compression

PNI House PTZ1500 supports a maximum Hard Disk of maximum 8TB. We recommend the installation of a dedicated Hard Disk for surveillance systems that ensure safe operation 24/7. H.265+ video compression, the newest and most efficient compression technology, maximizes storage space without affecting video quality. Connect a microphone to the dedicated audio input and the system will record audio and video in exceptional quality.

AHD PNI House PTZ1500e video surveillance kit

AHD PNI House PTZ1500 video surveillance kit

Hybrid DVR / NVR system

You can connect to this surveillance system not only the 4 AHD cameras included in the package. The system also supports the network connection of IP cameras. PNI House PTZ1500 supports:
• 4 analog 5MP cameras
• 4 analog 4MP cameras
• 4 analog 1080P cameras
• 4 analog cameras 4MP + 4 IP cameras 4MP
• 16 1080P IP cameras
• 8 5MP IP cameras

Motion detection, face detection and human detection

PNI House PTZ1500 offers all the necessary tools for a safe and intelligent surveillance of your space. Activate the motion detection, face detection and human detection functions and you will receive alerts by email, FTP or in the mobile application whenever the system detects movement or detect human presence. The face detection function will help you filter the recordings that contain a certain human face on a certain channel and in a certain period.

AHD PNI House PTZ1500 video surveillance kit

Compatible products

Video surveillance camera PNI House AHD32, 2MP, 1080P, outdoor IP66, 36 IR LEDs Video surveillance camera PNI House AHD32LR, 2MP, 1080P, outdoor IP66, 36 IR LEDs
Video surveillance camera PNI House AHD32 Video surveillance camera PNI House AHD32LR
Video surveillance camera PNI House AHD47 varifocal dome 2.8-12 mm 1080P 4 in 1 TVI CVI CVBS Internal Hard Disk Seagate SkyHawk HDD 1TB CCTV ST1000VX005
Video surveillance camera PNI House AHD47 varifocal dome 2.8-12 mm 1080P 4 in 1 TVI CVI CVBS

Video presentation

Video surveillance kit AHD PNI House PTZ1500 5MP UK

Write Your Own Review
You're reviewing:AHD PNI House PTZ1500 5MP video surveillance kit - DVR and 4 outdoor cameras
Your Rating
Product identification
Producer PNI
Product code PNI-PTZ1500
DVR/NVR Color Black
Room color White/Black
DVR/NVR features
Video inputs 4 x BNC
Video outputs 1 x VGA, 1 x HDMI
Playback resolution 4K (HDMI) / 1080P (VGA)
Audio inputs 1 x RCA
Audio outputs 1 x RCA
Registration type Simultaneous audio and video recording
Audio compression G711A
Video compression H.265+
Data storage maximum 1 x 8 TB HDD 3.5
Network interface RJ45 10/100 Mbps
Firmware update Yes, via USB
Supply voltage 12V/2A
Operating temperature -26°C ~ +80°C
size 255 x 218 x 43 mm
Number of channels 4 analog
Recording resolution and number of channels, variants • 4 5MP analog cameras • 4 4MP analog cameras • 4 1080P analog cameras • 4 4MP analog cameras + 4 4MP IP cameras • 16 1080P IP cameras • 8 5MP IP cameras
USB ports 2 x USB2.0
Dedicated application XMEye
Network Yes, RJ45 LAN Port
Motion detection Yes
Face detection Yes
Camera features
Image sensor Color CMOS
Video system PAL/NTSC
PIXEL 2560 × 1920px
Video output Analogue, 75Ω, BNC connector
Degree of protection IP66, metal housing
IR illumination distance Up to 30 m
size 65 x 180 x 60 mm
Number of IR LEDs 36
feeding 12V / 1A
LENS 3.6 mm
Operating temperature -26°C ~ +80°C
Dedicated application XMEye
Sensor resolution 5MP
The package contains
DVR / NVR Yes
Surveillance cameras 4 indoor/outdoor rooms

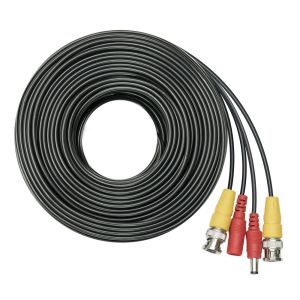

Camera connection cables 4 x 18.3 m
Power splitter Yes, 1 x 4
NVR / DVR power supply 230V -> 12V 2A
Software CD Yes
User manual Yes
USB mouse Yes
Camera power supply 230V -> 12V 3A
