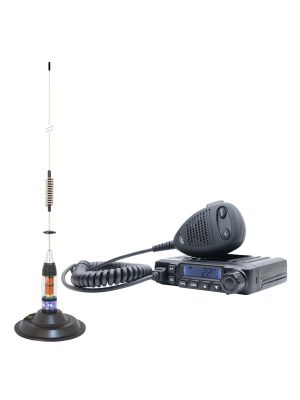

Wireless CB PNI Escort package HP 6500 ASQ + Antenna CB PNI Extra 48
Reduced dimensionsIts small dimensions (only 110x120x25mm) allow the station to be placed even in very narrow spaces, without having to resort to a real installation, as in the case of a classic CB. | |
Emission power 4WThe station complies with the legislation in force in Romania harmonized with European standards, having the maximum legal power allowed of 4 W. | |
FM/AMThe PNI Escort HP 6500 CB station allows communication in the FM band, used in Romania, but also in the AM band, when traveling abroad. In addition to the band type, the station also allows the selection of the frequency band, a setting necessary for using the station in other European countries. | |
Double squelch, adjustable and automatic digitalPNI Escort HP 6500 is improved with a digital automatic system for reducing noise and interference (Digital Automatic Squelch). The dual manual and automatic squelch mode offers 28 and 9-level adjustments along with the RF Gain function for a finer reception adjustment. | |
Discreet and efficientThe PNI Extra 48 antenna is among the smallest CB antennas (it has a height of only 45 cm) and can be mounted both on cars and on vans or minibuses. Its small dimensions make it almost imperceptible, easily confusing with the radio antenna. The average reception distance is 10 km. | |
Anti-noise designThe PNI Extra 48 antenna has a special anti-noise design that allows the air to slide around the spike, eliminating the noise produced by the wind. |
Product identification | |
Product code | PNI-PACK65 |
General characteristics of the radio station | |
Model | Portable |
Emission band type | AM-FM |
Frequency | 26.965-27.405 MHz |
channels | 40 AM/FM |
Speaker audio power | 1W |
Sensitivity (20dB SINAD) | greater than 1 µV (AM/FM) |
Emission power | 4 W |
Modulation | 80 - 90% |
feeding | 12 V |
Consumption | 2A maximum |
Dimensions / Weight | 110 X 120 X 28 / 385 g |
Special radio station features | |
Channel scan | Yes |
RF Gain | Yes, 9 levels |
Lock the keyboard | Yes |
Emergency channel button 9/19 | Yes |
ASQ adjustable | Yes, 28 levels |
SQ - Squelch | Yes |
Characteristics of the radio antenna | |
Working frequency | 26 - 28 Mhz |
Number of channels | 80 |
Maximum power applied | 150 W |
Minimum SWR in the center of the band | less than 1.2:1 |
Antenna length | 45 cm (magnetic base included) Spike length: 44 cm |
Working distance | 7 km |
Impedance | 50 Ohms |
Material | Fiber glass |
Connector type | PL259 |
Magnetic base included | Yes |
Cable length | 4 m |
The package contains | |
CB radio station | Yes |
CB radio antenna | Yes |
Magnetic base | Yes |
Plug PL259 | Yes |
RG58 cable | Yes, 4 m |
