Voltage inverter PNI SP3024 24V power supply 230V output 3000W pure sine wave

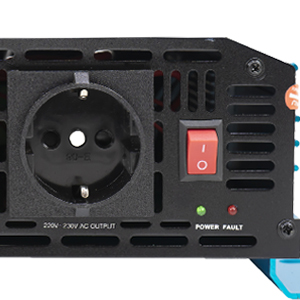

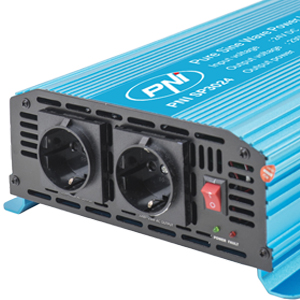

| 2 230V socketsThe PNI SP3024 inverter is equipped with two 230 V alternating current outputs, pure sine wave to power any electrical appliance, respecting the technical instructions and maximum permitted consumption. |
Multiple applicationsThe inverter can be used to power various electrical devices with resistive loads such as: televisions, lighting lamps, radios, fans, refrigerators, pumps, and power-supplying household appliances, respecting the maximum power of the inverter. | |
| Operating status warningThe status LEDs of the PNI SP3024 inverter warn you of the presence of error situations such as a discharged vehicle battery, overheating or overloading of the device, or indicate its connection status to a power source. |
CompatibilityThe inverter can be used in any vehicle because it is designed to transform the voltage supplied by a 24 V stationary or car battery/battery assembly into 230 V 50 Hz voltage. It is only used when connected directly to the battery. | |
| Overheating protection Complete packageThe inverter's aluminum housing and built-in fan allow for highly efficient passive and active cooling, and operation at full capacity at all times. |
Incompatible with solar panelsCar inverters cannot be used with solar panels. There are special inverters for solar systems. |
|
Video presentation |
|
Voltage inverter PNI SP3024 24V power supply 230V output English Version |
| Product Identification | |
| Pattern | For inductive/resistive loads |
| Product code | PNI-SP3024 |
| General characteristics | |
| Output Power | 3000 W continuous |
| Input voltage | 20-30 V DC |
| Output voltage | 230V AC |
| Frequency of work | 50 Hz |
| Active cooling | With fan |
| Recommended cable size | min 10mmp |
| Output wave type | Pure Sinusoid |
| Efficiency | >88% |
| Operating temperature | -26°C ~ +80°C |
| Dimensions | 485 X 227 X 91 mm |
| Weight | 4.3 kg |
| Humidity | ≤ 90% |
| Alarms and protections | |
| Low battery warning | Yes, LED |
| Overload warning | Yes, LED |
| Surge warning | Yes, LED |
| Thermal protection | Yes |
| Short circuit protection | Yes |
| Overload protection | Yes |
| Automatic shut-off at undervoltage | Yes |
| Connections | |
| 230 V socket | 2 sockets |

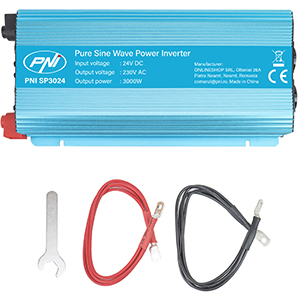

| The package contains | |
| Inverter | Yes |
| Power Cord | Yes |
| User Manual | Yes |
