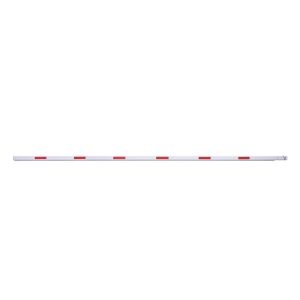

Replacement arm for the PNI parking access barrier, length 6m

Replacement arm for the PNI parking access barrier, length 6m

Right access parking barrier PNI BPL506D with Led, barrier length 6m, remote control included

Right access parking barrier PNI BPL506D with Led, barrier length 6m, remote control included
£770.80
Availability: In stock
SKU
PNI-BPL506D

Right parking access barrier PNI BPL506D

Right access barrier, 6 meters

The PNI BPL506D LED Access Barrier has a direct drive motor and stainless steel housing, durable and rust resistant.

This right opening parking barrier allows micro-adjustment of opening/closing limit, automatic closing timer, manual opening in case of power failure and automatic return when encountering an obstacle.

LED warning strip

The red and green LED strip provides drivers with additional information on the status of the barrier. The lights remain red until the boom is fully open, after which they turn green to indicate to the driver that he can safely cross the barrier.

Right parking access barrier PNI BPL506D

Right parking access barrier PNI BPL506D

Visibility at night

The arm is made of a lightweight aluminum with an internal structure for strength, including resistance to high winds.

On both sides of the arm are red reflective strips to maximize visibility at night. Night visibility of the strips is almost 90 degrees and up to 150 meters.

For added safety, a siren can optionally be installed that will give a sound warning when the arm lowers.

Remote control

The barrier can be used to restrict vehicle access in open or underground parking lots with low traffic.

The opening of the barrier is done by remote control. Pressing the button on the remote control will open, close or stop the barrier arm. This barrier is only recommended when there is a person available to help open and close the barrier arm.

In the event of a power failure, there is an option to manually open the barrier.

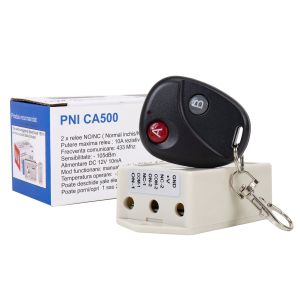

Optionally, access buttons, relays or access control keyboards can be connected which eliminate the need for the presence of a person responsible for access.

Right parking access barrier PNI BPL506D

Write Your Own Review
You're reviewing:Right access parking barrier PNI BPL506D with Led, barrier length 6m, remote control included
Your Rating
Product identification
Producer PNI
Product code PNI-BPL506D
Characteristics
Engine type actuator
Barrier arm length 6 m
Water protection class
feeding 230V ± 10% 50/60Hz
Frequency controller
size Body: 360 x 245 x 1060 mm Barrier: 6000 x 100 x 45 mm
Net weight 52 kg
LED arm Yes
Working temperature -26°C ~ +80°C
Location of the barrier body On the right
Lifetime 5 million shareholders
Noise level less than 50dB
Opening duration 6 seconds
Nominal power 90 W
Package contents
Barrier body Yes
Barrier
Remote Yes, 2 pcs.
Mounting accessories Yes
Foot support barrier Yes
Photocell Yes, 2 pcs.
User manual Yes
