PNI House video surveillance kit - NVR 16CH 1080P and 2 PNI IP2DOME 1080P PNI camera
Access and control methods
The PNI House video surveillance kit can be controlled from mobile devices through the XMEye application compatible with Android and iOS, and from PC through the General CMS software. You can find the CMS installation file on the CD included in the package or you can download it from our website, from the product page, Download section.
NVR (Network Video Recorder) with a maximum of 16 full HD channels
With the PNI House 1080P NVR you have the possibility to record and play back images from a maximum of 16 video surveillance cameras with 1080p resolution or 8 video cameras with 1080p resolution. Note: This device is not compatible with analog cameras.
You can view the recordings in real time from any device (laptop, PC or phone) via the Internet, either directly from the browser (Internet Explorer) or with the help of the dedicated application (compatible with Windows, iOS, Android) found on the CD in the package.
The PNI House 1080P NVR offers you the possibility to choose the type of recording you want: manual, on alarm, on motion detection or in a loop.
You have the possibility to connect several types of monitors, the device being equipped with HDMI and VGA output. The video recordings stored on the HDD installed in the NVR can be downloaded locally to a USB stick, through the product interface (USB2.0 or USB3.0) or remotely, through the Internet, directly to a PC. The PNI House 960P NVR can be accessed via the Internet, thanks to the RJ45 LAN port.
The PNI House 1080P NVR is of the latest generation and supports protocols such as: TCP/IP, DHCP, DDNS, DNS, PPPoE, UPNP, NTP, SMTP, ONVIF.
H.264 recording + audio
You can record video images with sound by connecting IP cameras with an integrated microphone or a separate microphone (accessory not included in the package).
Along with the evolution of surveillance systems, the manufacturers of HDDs (storage units) have created dedicated solutions for them. Thus, for maximum performance and problem-free operation of the PNI surveillance systems, we recommend using them only with dedicated CCTV HDDs. We mention here WD Purple, WD RE, WD SE, models with reliability, resistance and quality guaranteed 24/7.
This system allows sending warnings to the set email address in the event of an alarm (motion detection, no image, etc.). Access the system menu and make the settings according to the image below:
The PNI House IP2DOME video camera is equipped with 2.8 - 12 mm varifocal lenses that allow setting the zoom and focus at the desired points.
P2P function and full HD resolution
The PNI House IP2DOME IP camera is accessed directly through a P2P connection, without the need to configure the router. By entering your username and password you have easy access to all camera functions.
Visualization even in low light conditions
The PNI IP2DOME IP camera is equipped with 30 infrared LEDs, which allows you to view even at night, at a distance of up to 30 m. It can be used to monitor homes, offices, factories, shops, hospitals, etc. Simple, convenient and in real time.
Remote recording on PC or NVR
You can record the images captured by the video camera on a computer, via the Internet (provided that it is turned on for the entire duration of the recording) or on an NVR (provided that it has installed at least one HDD set to read-write mode).
Exterior and interior
You can use the product to monitor indoor and outdoor spaces. Protection class IP66 guarantees the isolation of the internal components of the chamber from moisture and dust.
Compatible power supply

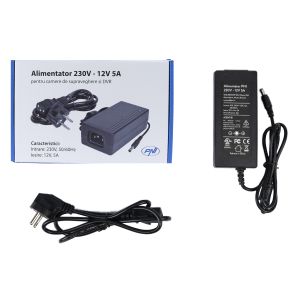

If you use the camera in stand-alone mode, we recommend using a compatible 12V 2A power supply or the model from PNI Power supply 220V - 12V 5A for surveillance cameras and DVR (Product code PNI-ACCTVALIM ).
|Video outputs||1 x VGA, 1 x HDMI|
|Playback resolution||1080P (HDMI)|
|Audio inputs||1 x RCA|
|Audio outputs||1 x RCA|
|Data storage||maximum 2 x 4 TB HDD (not included) dedicated to video surveillance|
|Network interface||RJ45 10/100 Mbps|
|Serial interface||1 x RS485|
|Firmware update||Yes, via USB|
|Supply voltage||12V / 4A|
|Operating temperature||-10°C ~ +50°C|
|size||300 x 225 x 45 mm|
|Number of channels||16 channels 1080P|
|Recording resolution and number of channels, variants||16 x 1080P 16 x 960P 6 x 1080P 5 x 5MP|
|USB ports||1 x USB 2.0 + 1 x USB 3.0 (for data copying only)|
|Image sensor||Color CMOS|
|PIXEL||1080P (1920 x 1080)|
|Minimal lighting||0.1 Lux/F1.2|
|Degree of protection||IP66, metal housing|
|IR illumination distance||Up to 30 m|
|size||137 x 148 x 100 mm|
|Number of IR LEDs||36|
|feeding||12V / 1A|
|LENS||Varifocal 2.8 - 12 mm|
|Network interface||RJ45 10/100Mps|
|Operating temperature||-10 ~ +50°C|
|Viewing angle||360 degrees|
|The package contains|
|Surveillance cameras||2 indoor/outdoor rooms|
|NVR / DVR power supply||Yes|
