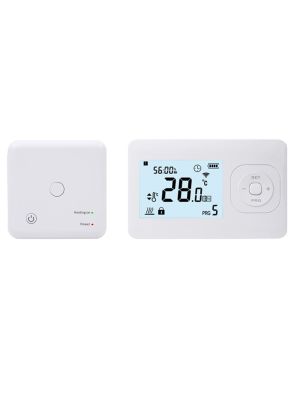

PNI CT60 wireless thermostat for thermal power plants, lighting display, daily programs

Wireless thermostat, measuring step 0.1 ° C

The PNI CT60 wireless thermostat is very accurate in measuring temperature and turns the heating system on and off based on a temperature limit and a preset time period. The thermostat has 3 operating modes: Scheduled , Manual and Holiday (anti-freeze). In programmed mode, 4 operating periods can be set for each day of the week.

Schedule by day

For each day of the week you can set a maximum of 4 time periods , each with its own temperature limit. Thus, you can have different programs every day, depending on the time of departure or arrival at home.

Example of 4 time periods in a day:
06:00 - 23 degrees
08:00 - 22 degrees
17:00 - 23 degrees
23:00 - 22 degrees

Parameter setting menu

The advanced settings menu allows you to set parameters for different functions: Hysteresis, anti-freeze temperature, child protection function, open window function, reset, etc.

Key lock function

If the child protection function has been activated in the advanced settings, the thermostat keys will lock as soon as the screen backlight turns off to prevent inadvertent temperature change.

Anti-freeze function

With the anti-freeze function you can leave the boiler quietly on account of the smart thermostat PNI CT60. From the advanced settings menu, set a temperature level between 5 ° C and 15 ° C, a temperature that will be maintained throughout your absence.

Open window function (OWD)

Pairing

The two units, transmitter and receiver, communicate wirelessly, via radio waves, while the receiver connects via wire to the boiler. As the product must be connected to a 230V mains supply and to heating equipment, installation must only be carried out by qualified personnel. The two units come paired from the factory.
