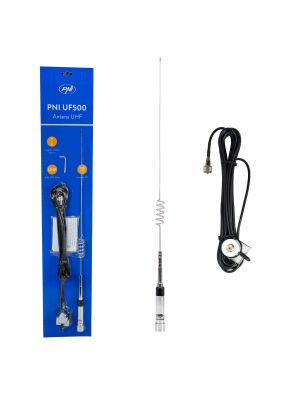

UHF antenna PNI UF500

UHF antenna PNI UF500, 63 cm, 430-470 MHz, with cable PNI T941

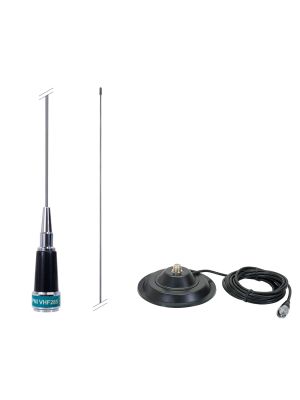

PNI antenna VHF285 for taxi 134-174MHz, spoke length 128 cm, without cable

The VHF antenna for taxi, works in the frequency range 134-174MHz
£10.19
Availability: In stock
SKU
PNI-VHF285

image description

performances

The performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.5:1, maximum applied power 200 W, impedance 50 Ohms, stainless steel, etc.

Communication distance

The communication distance is another decisive factor in the purchase and use of a VHF antenna.

Thus, the maximum communication distance is reached in ideal working conditions: calibrated antenna, open field without obstacles and optimal climatic conditions. Any obstacle such as: hills, mountains, buildings, walls and the power of the station can significantly reduce the transmission/reception distance.

image description

image description

Antenna length

The length of the antenna is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the communication distance / range. The PNI VHF285 antenna has a length of 128 cm.

Batch

This antenna is ready to mount on a magnetic base with PL connector type or on a fixed support.

We recommend the separate purchase of the PNI S120/PL 125mm magnetic base, which contains a 4m cable and a PL250 plug.

All that remains is to connect it to a station and calibrate it to use it at maximum performance.

image description

Write Your Own Review
You're reviewing:PNI antenna VHF285 for taxi 134-174MHz, spoke length 128 cm, without cable
Your Rating
Product identification
Product code PNI-VHF285
Antenna type 5/8 λ
Work tape VHF (Very High Frequency)
General characteristics
Length Spike length: 128 cm Total length: 138 cm
Working frequency 134 - 174 MHz
Maximum power applied 200W
Minimum SWR in the center of the band less than 1.5:1
Gain (Gain) 3.4dB
Connector type PL
Hole diameter 16 mm
Material Stainless steel
Weight 180 g
Product color Silver
The package contains
4m RG58 cable with PC plug, Code T633 Not
Plug PL259 Not
Butterfly screw SC 27, Code T441 Not
LC 27 antenna coupling plug, Code T370 Not
Midland FC 27 mount, Code T478 Not
3 dipoles Not
Antenna mounting bracket Not
10 mm metric screw Not
