CBR CBI Station CBI ESCORT CB 8000L ASQ + CB PNI Extra 45 with Magnet

CBR CBI Station CBI ESCORT CB 8000L ASQ + CB PNI Extra 45 with Magnet

CB PNI ESCORT HP 8000L radio station + CB PNI Extra 40_1 antenna

Kit CB CBI PNC ESCORT CB 8000L ASQ + CB PNI Extra 40 magnet antenna

Kit CB radio PNI ESCORT CB 8000L ASQ + CB PNI ML70 antenna

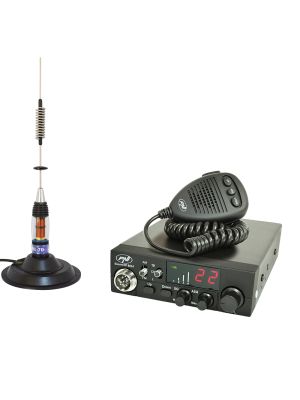

Radio station and CB antenna
£76.18
Availability: In stock
SKU
PNI-PACK2

so adjustable

ASQ Adjustable

An innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band.

ASQ button on microphone

For increased comfort behind the wheel, PNI has positioned the automatic squelch (ASQ) activation/deactivation button on the microphone. In addition to this button, we also find up/down buttons on the microphone for changing channels, so you won't have to take your eyes off the road to operate these main functions.

asq on the microphone

REDUCED DIMENSIONS

Reduced dimensions

You can use the product in any car, because it is one of the smallest CB stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between the seats, without being uncomfortable or disturbing.

Key lock switch

The PNI Escort HP 8000L CB radio station has a switch on the front panel that allows the selection of the emergency channel (19), the normal operating mode (CH) and the activation of the key lock function (L) , a useful function in situations where you want to avoid touching accidental pressing of the station keys.

CB radio station PNI Escort HP 8001L ASQ includes headphones with HS81 microphone

CB antenna PNI ML70 length 70cm and magnet

CB antenna performance PNI ML70

The performance of the product is closely related to the technical characteristics of the antenna in ideal conditions of installation and use: SWR <= 1.2, maximum applied power 200 W, impedance 50 Ohms, stainless steel, etc.

Communication distance

The communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the maximum communication distance of 9 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance.

range of action CB antenna PNI ML70 length 70cm and magnet

CB antenna PNI ML70 length 70cm and magnet

Antenna length

The length of the antenna is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range of action. The PNI ML70 antenna is 70 cm long (magnetic base included).

Magnetic base

The PNI 145/PL magnetic base in the package is provided with a 4 m cable, sufficient for placing the antenna on the dome, it has a diameter of 145 mm and a strong magnet that gives the antenna stability even at high speeds.

magnetic base DV CB antenna PNI ML70 length 70cm and magnet

kit CB PNI ML70 antenna length 70cm and magnet

Full package

This kit is ready for assembly with: antenna, magnetic base with cable and plug PL259, Allen key for calibration. All you have to do is mount the antenna on the magnetic base, connect it to a CB radio station and calibrate it to use it at maximum performance.

Video presentation

CB PNI Escort HP 8000L

Write Your Own Review
You're reviewing:Kit CB radio PNI ESCORT CB 8000L ASQ + CB PNI ML70 antenna
Your Rating
Product identification
Product code PNI-PACK2
General characteristics of the radio station
Model Portable
Emission band type AM-FM
Frequency 26.965-27.405 MHz
channels 40 AM/FM
Microphone type 6 pins
Audio signal distortion less than 8% @ 1 KHz
Emission power 4 W
Modulation FM: 3KHz ± 0.2KHz, AM: 85-90%
feeding 12 V
Consumption second
Dimensions / Weight 115 x 36 x 152 mm / 0.8 kg
Special radio station features
ASQ (automatic squelch) Yes
Emergency channel button 9/19 Yes
ASQ adjustable Yes
Characteristics of the radio antenna
Working frequency 26 - 28 Mhz
Number of channels 40
Maximum power applied 200 W
Minimum SWR in the center of the band less than 1.2
Antenna length 70 cm (magnetic base included)
Working distance 7 km
Impedance 50 Ohms
Material Stainless steel
Connector type PL259
Hole diameter 16 mm
Magnetic base included Yes
Magnetic base diameter 145 mm
Cable length 4 m
The package contains
CB radio station Yes
CB radio antenna Yes
Magnetic base Yes



PNI-HP8000L
