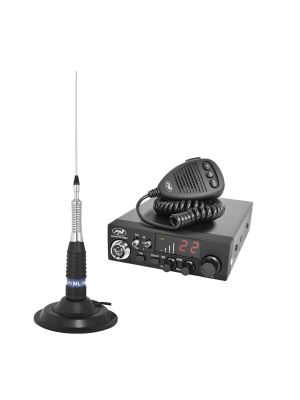

Kit CB radio CBI ESCORT CB 8024 ASQ + CB PNI ML100 antenna
Dual power supply 12V-24V DC | |
| The PNI Escort HP 8024 CB radio station can be mounted both on cars with 12V power supply, and on trucks or TIRs with 24V power supply. |
ASQ Adjustable | |
An innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band. |
|
ASQ button on microphone | |
| For increased comfort at the wheel, PNI has positioned the automatic squelch activation/deactivation (ASQ) button on the microphone. Next to it we also find the up/down buttons for changing channels. |
Key lock switch | |
The PNI Escort HP 8024 CB radio station has a switch on the front panel that allows you to select the emergency channel (19), the normal operating mode (CH) and activate the key lock function (L), a useful function in situations where you want to avoid accidentally touching the station keys. |
|
Small dimensions | |
| You can use the product in any car, as it is one of the smallest CB radio stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between the seats, without being inconvenient or disturbing. |
Magnetic baseThe 120/PL magnetic base in the package is provided with a 4 m cable, sufficient for placing the antenna on the dome, has a diameter of 125 mm and a strong magnet that gives the antenna stability even at high speeds. |
|
| Performance of the PNI ML100 CB antennaThe performance of the product is closely related to the technical characteristics of the antenna under ideal conditions of installation and use: SWR <= 1.0, maximum applied power 400 W, impedance 50 Ohms, stainless steel, etc. |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the communication distance of maximum 12 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can lead to the reduction of this distance. |
|
| Antenna lengthThe length of the antenna is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range. The PNI ML100 antenna has a length of 110 cm (magnetic base included). |
| Product identification | |
| Product code | PNI-PACK13 |
| General characteristics of the radio station | |
| Exemplary | Furniture |
| Emission band type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| channels | 40 AM/FM |
| Microphone type | 6 pins |
| Audio signal distortion | less than 8% @ 1 KHz |
| Emission power | 4W |
| Modulation | FM: 1.8KHz ± 0.2KHz, AM: 85-95% |
| feeding | 12 -24 V |
| Consumption | 2 A |
| Dimensions / Weight | 115 x 36 x 152 mm / 0.8 kg |
| Special features of the radio station | |
| ASQ (automatic squelch) | Yes |
| Keyboard lock | Yes |
| Emergency channel button 9/19 | Yes |
| Adjustable ASQ | Yes |
| Radio antenna features | |
| Working frequency | 26 - 28 MHz |
| Number of channels | 100 |
| Maximum applied power | 400W |
| Minimum SWR in the center of the band | 1.0 |
| Antenna length | 100cm |
| Working distance | 10 km |
| Impedance | 50 Ohms |
| Material | Stainless steel |
| Connector type | PL259 |
| Magnetic base included | Yes |
| Magnetic base diameter | 125mm |
| Cable length | 4m |
| The package contains | |
| CB radio station | Yes |
| CB radio antenna | Yes |
| Magnetic base | Yes |
