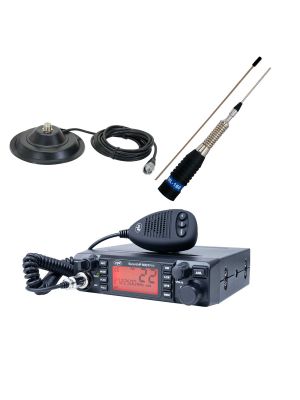

CB PNI ESCORT ESQORT HP 9001 PRO ASQ radio station kit adjustable, AM-FM, 12V, 4W + CB PNI ML70 antenna 26-30MHz, 200W, 70cm, magnet 145 mm included
PNI-HP9001P - CB radio station PNI Escort HP 9001 PRO ASQ adjustable, AM-FM, 12V/24V, 4W, Scan, Dual Watch, ANL, multicolor screen
| 12V / 24V power supplyThe evolution of the previous PNI Escort HP 9001, the new PRO version adds the possibility of 24V power supply. PNI Escort HP 9001 PRO accompanies drivers of cars, trucks or trailers on the road. It is an excellent product, equipped with all the functions necessary for efficient communication. It is an easy-to-use communication tool. |
Multi-standard CB radio stationWith 80 AM/FM channels, with a power ranging from 1W to 4W depending on the country, the HP 9001 PRO easily adapts to the regulations required in different European countries. With a simple key combination, you can change the specific operating standard in countries such as: Spain, Italy, France or Germany. |
|
| Adjustable ASQ, key lock functionWith compact dimensions, easy to install and equipped with essential functions (ASQ, Lock, Dual Watch, Scan, ANL, MEM) the PNI Escort HP 9001 is enriched with several buttons, including the one dedicated to emergency channels 9/19 and the backlit multifunctional screen. |
Multicolor screenFor maximum visual compliance, the HP 9001 PRO adapts to your needs by providing 7 background colors for the screen, such as: red, green, purple, blue and yellow. |
|
PNI-ML70 - PNI ML70 CB antenna, length 70cm, 26-30MHz, 200W, 145 mm magnet included
| Performance of the PNI ML70 CB antennaThe performance of the product is closely related to the technical characteristics of the antenna under ideal conditions of installation and use: SWR <= 1.2, maximum applied power 200 W, impedance 50 Ohms, stainless steel, etc. |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the communication distance of maximum 9 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can lead to the reduction of this distance. |
|
| Antenna lengthThe length of the antenna is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range. The PNI ML70 antenna has a length of 70 cm (magnetic base included). |
Magnetic baseThe PNI 145/PL magnetic base in the package is equipped with a 4 m cable, sufficient for placing the antenna on the dome, has a diameter of 145 mm and a strong magnet that gives the antenna stability even at high speeds. |
|
| Complete packageThis kit is ready to install and includes: antenna, magnetic base with cable and PL259 plug, Allen key for calibration. All you have to do is mount the antenna on the magnetic base, connect it to a CB radio station and calibrate it to use it at maximum performance. |
PNI-HP9001P - CB radio station PNI Escort HP 9001 PRO ASQ adjustable, AM-FM, 12V/24V, 4W, Scan, Dual Watch, ANL, multicolor screen | |
|---|---|
| Product identification | |
| Producer | NIP |
| Product code | PNI-HP9001P |
| Product type | CB radio station |
| General features | |
| Exemplary | Furniture |
| Emission band type | AM/FM |
| channels | 40 |
| Frequency | 26.965 - 27.405 MHz |
| Microphone type (pins) | 6 pins |
| Speaker audio power | 3W |
| Sensitivity (20dB SINAD) | less than 0.5 µV AM/FM |
| Emission power | 4W |
| Modulation | FM: 1.8KHz ± 0.2KHz, AM: 85-95% |
| feeding | 12V / 24V |
| Current consumption | maximum 2200mA |
| Dimensions (W x H x D / Weight) | 160 X 170 X 45 mm / 500g |
| 1DIN mounting | Yes |
| Special features | |
| Dual Watch | Yes |
| Channel scan | Yes |
| ASQ | Yes |
| Keyboard lock | Yes |
| LCR - last selected channel | Yes |
| Adjustable ASQ | Yes |
| Emergency channels | Yes |
| Noise filter | ANL (Automatic Noise Limiter) |
| Multicolor screen | Red, Green, Purple, Blue, Yellow |
| Channel memory | Yes |
| Operating temperature | -26°C ~ +80°C |
| Display type | LCD |
| Channel monitoring | Yes |
| Display | Yes |
| Use, destination | in the car, truck or at home. |
| Rear panel connections | |
| Additional speaker connection | Yes |
| Microphone connection | Yes |
| The package contains | |
| Radio station | Yes |
| Microphone | Yes |
| Radio station mounting bracket and screws | Yes |
| Microphone holder and screws | Yes |
| Power cable | Yes |
| Cigarette lighter socket | Yes |
| User manual | Yes |
PNI-ML70 - CB antenna PNI ML70 length 70cm, 26-30MHz, 200W, 145 mm magnet included | |
|---|---|
| Product identification | |
| Product code | PNI-ML70 |
| Workband | ? B |
| Product color (spike) | Black |
| General features | |
| Working frequency | 26 - 28 MHz |
| Number of channels | |
| Maximum applied power | 200W |
| Minimum SWR in the center of the band | less than 1.2 |
| Length | 70 cm (magnetic base included) |
| Impedance | 50 Ohms |
| Material | Stainless steel |
| Connector type | PL |
| Hole diameter | 16 mm |
| Cable length | 4m |
| Weight | 800g |
| size | 100 x 18 x 5 cm |
| Gain | 4 dBi |
| Working distance | 8 km |
| Operating temperature | -26°C ~ +80°C |
| The package contains | |
| Radio station antenna | Yes |
| RG58 cable | 4 m |
| PL259 plug | Yes |
| Magnetic base | 145mm |
