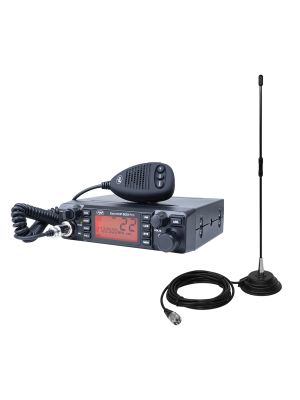

CB PNI ESCORT ESQORT HP 9001 PRO ASQ radio station kit adjustable, AM-FM, 12V, 4W + CB PNI ML100 antenna, 26-30MHz, 250W, 100cm, 125mm magnet included

£94.71

Availability: In stock

SKU

PNI-PACK17PRO

PNI-HP9001P - CB radio station PNI Escort HP 9001 PRO ASQ adjustable, AM-FM, 12V/24V, 4W, Scan, Dual Watch, ANL, multicolor screen

	12V / 24V power supply The evolution of the previous PNI Escort HP 9001, the new PRO version adds the possibility of 24V power supply. PNI Escort HP 9001 PRO accompanies drivers of cars, trucks or trailers on the road. It is an excellent product, equipped with all the functions necessary for efficient communication. It is an easy-to-use communication tool.
Multi-standard CB radio station With 80 AM/FM channels, with a power ranging from 1W to 4W depending on the country, the HP 9001 PRO easily adapts to the regulations required in different European countries. With a simple key combination, you can change the specific operating standard in countries such as: Spain, Italy, France or Germany.
	Adjustable ASQ, key lock function With compact dimensions, easy to install and equipped with essential functions (ASQ, Lock, Dual Watch, Scan, ANL, MEM) the PNI Escort HP 9001 is enriched with several buttons, including the one dedicated to emergency channels 9/19 and the backlit multifunctional screen.
Multicolor screen For maximum visual compliance, the HP 9001 PRO adapts to your needs by providing 7 background colors for the screen, such as: red, green, purple, blue and yellow.

	Performance of the PNI ML100 CB antenna The performance of the product is closely related to the technical characteristics of the antenna under ideal conditions of installation and use: SWR <= 1.0, maximum applied power 250 W continuously, impedance 50 Ohms, stainless steel, etc.
Communication distance The communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the communication distance of maximum 12 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, the station with the maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can lead to the reduction of this distance.
	Antenna length The length of the antenna is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range. The PNI ML100 antenna has a length of 110 cm (magnetic base included).
Magnetic base The 120/PL magnetic base in the package is provided with a 4 m cable, sufficient for placing the antenna on the dome, has a diameter of 125 mm and a strong magnet that gives the antenna stability even at high speeds.
	Complete package This kit is ready to install and includes: antenna, magnetic base with cable and PL259 plug, Allen key for calibration. All you have to do is mount the antenna on the magnetic base, connect it to a CB radio station and calibrate it to use it at maximum performance.

Video presentation
CB PNI ML100 antenna EN

PNI-HP9001P - CB radio station PNI Escort HP 9001 PRO ASQ adjustable, AM-FM, 12V/24V, 4W, Scan, Dual Watch, ANL, multicolor screen
Product identification
Producer	NIP
Product code	PNI-HP9001P
Product type	CB radio station
General features
Exemplary	Furniture
Emission band type	AM/FM
channels	40
Frequency	26.965 - 27.405 MHz
Microphone type (pins)	6 pins
Speaker audio power	3W
Sensitivity (20dB SINAD)	less than 0.5 µV AM/FM
Emission power	4W
Modulation	FM: 1.8KHz ± 0.2KHz, AM: 85-95%
feeding	12V / 24V
Current consumption	maximum 2200mA
Dimensions (W x H x D / Weight)	160 X 170 X 45 mm / 500g
1DIN mounting	Yes
Special features
Dual Watch	Yes
Channel scan	Yes
ASQ	Yes
Keyboard lock	Yes
LCR - last selected channel	Yes
Adjustable ASQ	Yes
Emergency channels	Yes
Noise filter	ANL (Automatic Noise Limiter)
Multicolor screen	Red, Green, Purple, Blue, Yellow
Channel memory	Yes
Operating temperature	-26°C ~ +80°C
Display type	LCD
Channel monitoring	Yes
Display	Yes
Use, destination	in the car, truck or at home.
Rear panel connections
Additional speaker connection	Yes
Microphone connection	Yes
The package contains
Radio station	Yes
Microphone	Yes
Radio station mounting bracket and screws	Yes
Microphone holder and screws	Yes
Power cable	Yes
Cigarette lighter socket	Yes
User manual	Yes

PNI-ML100 - PNI ML100 CB antenna, length 100 cm, 26-30MHz, 250W, 125mm magnet included
Product identification
Product code	PNI-ML100
Workband	? B
Product color (spike)	Silver
General features
Working frequency	26 - 28 MHz
Number of channels	90
Maximum applied power	250W
Minimum SWR in the center of the band	1.0
Length	100 cm (110 cm with base included)
Impedance	50 Ohms
Material	Stainless steel
Connector type	PL
Hole diameter	16 mm
Cable length	4m
Weight	1.2 Kg
size	1000 x 150 x 40 mm
Gain	4 dBi
Working distance	12 km
Operating temperature	-26°C ~ +80°C
The package contains
Radio station antenna	Yes
RG58 cable	4m
PL259 plug	Yes
Magnetic base	125mm

PNI-ML100

Lang	Type	Name	Link
EN	Declaration of Conformity	Declaration of conformity EU10	Link
EU10	User manual	User manual EU10	Link

PNI-HP9001P

Lang	Type	Name	Link
EU10	Declaration of Conformity	Declaration of conformity	Link
