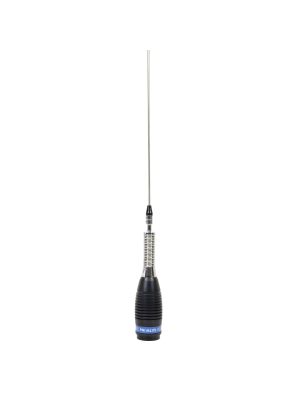

CB antenna PNI ML175 length 152 cm

CB antenna PNI ML175 length 165 cm, 26-30 MHz, 1000 W, without cable

Sirio ML145 CB Antenna with PL Thread

Sirio CB antenna ML145 with PL thread, length 145 cm, 27 - 28.5 MHz, 900W, without cable

CB antenna PNI ML180 length 194 cm, 26-30MHz, 1000W, without cable

CB antenna PNI ML180, length 194 cm, 26-30MHz, 1000W, without cable
£33.18
Availability: In stock
SKU
PNI-ML180-FC

CB antenna PNI ML180 length 194 cm

Mobile CB antenna (vehicle mount)

The PNI ML180 CB antenna is a high-performance mobile antenna, intended for use in the 26-30 MHz frequency range, with a length of 194 cm and a maximum supported power of up to 1000W.

Recommended accessories (not included)

Designed for vehicle mounting, it offers very good reception and transmission gain due to its size, but comes without cable and without mounting base, requiring the separate purchase of a coaxial cable (RG58 type), a fixed mounting bracket or a magnetic base with PL connector.

CB antenna PNI ML180 length 194 cm

CB antenna PNI ML180 length 194 cm

Requires SWR calibration after installation

The antenna allows SWR adjustment to optimize performance and protect radio equipment, being suitable for use both in classic CB networks and for applications in the 10-meter band (amateur radio), where legislation allows.

Video presentation

CB antenna PNI ML180 length 194 cm, 26 30MHz, 1000W, without cable English Version

Write Your Own Review
You're reviewing:CB antenna PNI ML180 length 194 cm, 26-30MHz, 1000W, without cable
Your Rating
Product identification
Product Code PNI-ML180-FC
Working tape CB
Product color (herringbone) Silver
Reel color Black
General characteristics
Operating frequency 26 - 30 MHz
Number of channels 400
Maximum applied power 1000W
Minimum S.W.R. in the center of the band less than 1.2:1
Length 194 cm
Impedance 50 Ohm
Material Stainless steel
Connector type PL
Hole diameter 16 mm
Weight 464 gr
Dimensions 40 X 40 X 1940 mm
Polarization Vertical
Working distance 20 km
Operating temperature -26°C ~ +80°C
Package contains
Radio antenna Yes



PNI-ML180-FC
