UPS SilverCloud 850VA with pure sinusoidal LCD display for thermal power plants

UPS - Pure Sinusoidal uninterruptible power supply for thermal power plants

The SilverCloud 850VA UPS with LCD screen is the ideal solution for protecting wood-burning boilers, equipment with engines and other electronics sensitive to power outages for short and long periods of time. The device works with an input voltage of 140~280VAC+/-2% providing a constant output of 230 V +/- 10%.

Overload and short circuit protection

SilverCloud 850VA is equipped with an intelligent protection system in case of overload, excessive discharge or short circuit and with a fuse that will protect the electronic equipment from possible damage due to a short circuit.

AVR - Output voltage stabilization

The device has an integrated voltage stabilizer on the output, as it provides a voltage that is as correct as possible, and close to that required to power the electrical and electronic equipment in your home.

USB-PC Communication / Monitoring

The SilverCloud 850VA UPS with LCD screen is equipped with an intelligent monitoring/control and diagnostic system of the operation, technical parameters, which can be monitored from a PC/Laptop with the help of the USB connection and cable available in the package. Once connected to a PC/Laptop with Internet access, you can monitor the operating parameters of the UPS remotely, via the Internet, with the help of applications such as TeamViewer.

Autonomy: External battery/accumulator

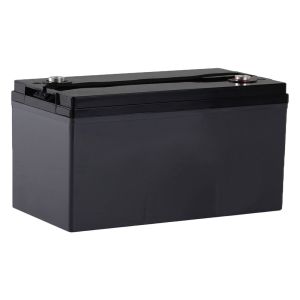

The device allows the connection of a car battery or, as recommended, of a high-capacity GEL VRLA AGM battery (50 - 200Ah) that does not require maintenance and has a long period of use. This offers a backup time of even a few hours in case of power failure, the duration varying depending on the recorded instant consumption. The device automatically charges the battery when it runs out of power.

⊗ ATTENTION: SilverCloud 850VA UPS requires battery connection to work.

LCD screen and intelligent menu

The UPS warns you both audibly and visually in the event of a low battery level, in the event of switching to battery power or in the event of overcharging. The LCD screen allows you to monitor the operating status of the device, view the battery level and warnings.

Connections available

The SilverCloud 850VA UPS has 2 schuko outputs for powering electronic devices at 230V, an input/output for the protection of the fixed telephone line, and a USB connector for monitoring/diagnosing the system on a PC/Laptop.
