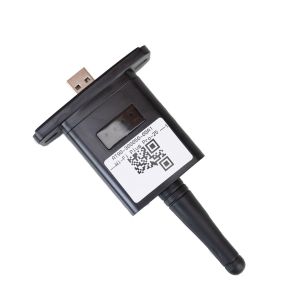

PNI Smart Dongle-WLAN

PNI Smart Dongle-WLAN for Internet monitoring WiFi solar inverter PNI SC1800C PRO manufactured 2023

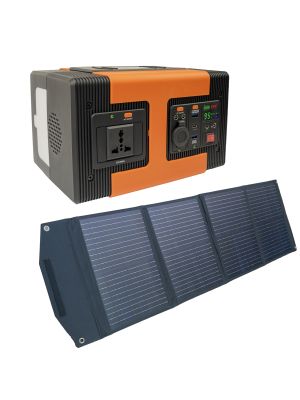

Power station PNI GreenHouse SP600W 1

Power station PNI GreenHouse SP600 with portable 100W solar panel, Lithium Battery 600Wh, 230V, 600W pure sine output, 2 x 12V, 2 x USB QC, 2 x USB Type C

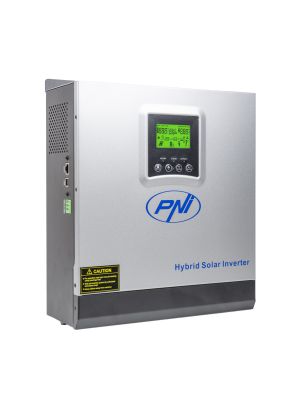

Solar inverter PNI GreenHouse SC1800C PRO 3KW 13A 3000VA, 24V, MPPT 60A, Off Grid Pure Sine Hybrid

Solar inverter PNI GreenHouse SC1800C PRO 3KW 13A 3000VA, 24V, MPPT 60A, Off Grid Pure Sine Hybrid
£331.78
Availability: In stock
SKU
PNI-SC1800PRO

The heart of an Off Grid solar system

The PNI GreenHoue SC1800C PRO solar inverter is the heart of a small solar system for isolated areas with or without electricity such as:

- small cabins, gazebos, camping trailers;

- can be used as a sheepfold in the mountains or a seasonal agricultural construction in the field;

- can be used including residentially in any home to reduce consumption, respectively the value of the energy bill;

Offering a continuous output power of 3000W with pure sine wave, it can be used for the entire home lighting installation and why not for other small electronics with a motor: refrigerators, pumps, tools, hobby tools, phone chargers, laptop, LCD TV, radio, etc.

A complete photovoltaic system can be composed of:

1. Solar panels;

2. Backup network connection (backup);

3. Backup connection to a generator with voltage stabilization (backup);

4. Off Grid Solar Inverter;

5. Dedicated batteries for photovoltaic systems;

6. Household consumers;

SC1800C PRO A4-1

Hybrid operating modes, MPPT solar charger, pure sine output

1. 230V output with pure sine wave;

2. Solar charger with MPPT with maximum charging efficiency and solar energy conversion; input voltage from panels: 30 - 120V;

3. Intelligent energy use: solar energy consumption priority mode; battery energy consumption priority mode; grid consumption priority mode (also known as UPS);

4. Intelligent battery charging for long battery life;

5. Multiple protections against overload, overtemperature, short circuit;

Pure Sine Wave is similar/identical to the voltage from the national power grid and can power all types of household and electronic appliances: refrigerators, small washing machines, small pump motors, hobby tools, laptop chargers, mobile phone chargers, cameras, low-power and fixed-speed motors, printers, car/portable refrigerators (with or without compressor, televisions, video recorders, etc.)

SC1800C PRO A4-4

Illuminated LCD screen and multi-function menu

The PNI GreenHouse SC1800C PRO inverter is equipped with an illuminated LCD screen and a multifunctional menu that provides all the necessary information about the system's operating mode:

- voltage from panels; battery charging voltage;

- DC battery voltage and AC output voltage;

- solar charging power, instant power consumption;

- priority operating mode: network, solar, batteries;

- frequency, energy flow, etc.

SC1800C PRO A4-2

Hybrid inverter with multiple safety protections

Like any high-performance, state-of-the-art equipment, this inverter comes with a multitude of protections to avoid failure even when the user makes an operating mistake:

- overload protection;

- short circuit protection;

- battery/accumulator polarity reversal protection;

- deep discharge protection of batteries/accumulators;

Connectivity is an aspect very well highlighted both on the product casing and in the documentation to facilitate the installation of the product by any authorized installer:

1. AC 230V input;

2. AC 230V output;

3. inverter on/off button;

4. AC input protection;

5. 24V battery connection;

6. photovoltaic panel input 30 - 120 V DC;

SC1800C PRO A4-5

PC and optional remote monitoring software

The hybrid inverter and advanced parameters can be monitored and analyzed using dedicated PC software via the USB connection it is equipped with.

For technology enthusiasts, the system also offers the possibility of remote monitoring from the mobile application or web interface using a dedicated PNI Smart Dongle-WLAN that can be purchased separately.

A second advantage of the PNI SC1800C PRO solar inverter is the existence of several connections such as the one for service (COM-RS232-RJ45) and the one for external control with COM-NO-NC relay output.

SC1800C PRO A4-6

Mandatory accessories and protection systems for your safety and the system

Integrating the PNI SC1800C PRO inverter into a complete photovoltaic system for safe general and residential use requires the installation of the accessories and disconnection and protection systems below:

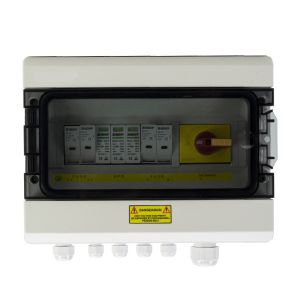

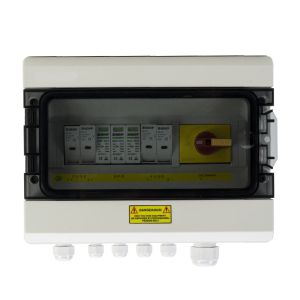

1. separation and protection system at the input from the photovoltaic panels (power switch, fuses, DC surge arrester sized according to the power of the panel string): PNI CBM-2 single-phase solar system protection and interruption panel (to be purchased separately)

2. separation and protection system at the input from the batteries (power switch and fuses sized according to the power of the battery bank - purchased separately)

3. separation and protection system at the 230V AC input and output (power switch and fuses sized according to the inverter power are purchased separately )

4. The photovoltaic panel structure and the inverter must be connected to a protective earth (grounding) socket, measured and sized correctly in advance according to local regulations.

Necessary accessories that are purchased separately to put the system into operation

- PNI 6 mm solar cable with UV protection - RED - 10m

- 6 mm solar cable with UV protection 10 meters - BLACK

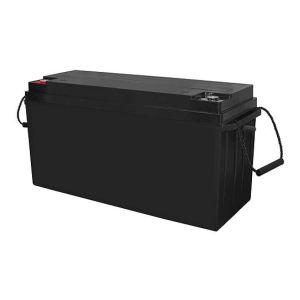

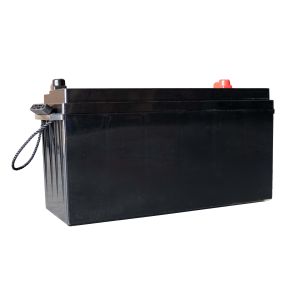

- Accumulator bank for 24V solar kits

- Photovoltaic solar panels

SC1800C PRO protections

Video presentation

Solar Inverter PNI GreenHouse SC1800B 3KW 24V 60A UK

Write Your Own Review
You're reviewing:Solar inverter PNI GreenHouse SC1800C PRO 3KW 13A 3000VA, 24V, MPPT 60A, Off Grid Pure Sine Hybrid
Your Rating
Features
Maximum input power from photovoltaic panels 2000 W
Maximum DC input voltage from photovoltaic panels 30 - 120 VDC ( Vmp)
Maximum Solar Charging Current 30 A Input from Panels 60 A output to batteries
Solar charging efficiency 98%
Solar charger type MPPT
Rated Output Voltage 230 V
Rated Output Power 3000 W (ideal conditions: number of batteries proportional to the desired power and 100% charged batteries)
Maximum apparent power 6000VA (peak, 0.5 seconds ideal conditions)
Output voltage waveform Pure Sinusoidal
Output Signal Frequency 50, 60 Hz
AC Input Voltage 230 V
Network connection (back-up) Yes
Accumulator 24 V
Compatible batteries AGM Lead Acid, GEL Flooded Lithium Ion User-defined
Battery supply voltage 24 V
Minimum battery starting voltage 23 V (cold start voltage)
Integrated inverter type High frequency (switching)
Inverter Efficiency 90%~93% (100% Battery Charged)
Typical Transfer Time 10ms(UPS, VDE) 20ms(APL)
Line Mode Efficiency >95% ( Rated R load, battery full charged)
Hybrid Operating Modes SBU - Solar / Battery / Uutility Solar Utility ( UPS )
AC Charging Voltage 230 V
Maximum AC charging current 30 A
Functions - Automatic switching Solar - Batteries - Grid - Energy Saver - Multiple protections - Multifunctional display - Dedicated menu for advanced settings - Monitoring with PC software (USB cable) - Remote monitoring from mobile / PC (with optional USB WiFi Dongle)
Communications USB - Software PC USB - with optional WiFi module (purchased separately)
Low battery alarm Yes
Battery Disconnected Alarm Yes
Surge alarm Yes
AC Overload Protection Yes
Mounting on the wall
Temperature of use -26°C ~ +80°C
Dimensions/Weight 350 X 290 X 120 mm 6.9 kg
Standby power consumption ≈ 25W (Powersave mode ≈ 12.5W)
The package contains
Solar Inverter Yes
Accessories USB cable
User Manual Yes
