RigExpert Stick-230 Antenna Analyzer 0.1-230 MHz, Bluetooth, Dedicated Application, Li-Ion Battery
| The newest and most modern antenna analyzerThe RigExpert Stick-230 is a powerful antenna analyzer designed for testing, checking, adjusting or repairing antennas and antenna feed lines. The SWR (Standing Wave Ratio) and Impedance graph, as well as the Smith Chart and Polar Chart display are key features of this analyzer that significantly reduce the time needed to tune an antenna. |
For radio amateurs or professional useEasy-to-use measurement modes, as well as additional functions, such as connecting to a computer or via bluetooth to a smartphone, make the RigExpert Stick-230 attractive to both professionals and enthusiasts. |
|
| Memory function for storing graphicsUsing the RigExpert Stick-230 you will quickly check an antenna, you will be able to calibrate it, you will be able to measure and compare the SWR and impedance values before and after an event (rain, storm, etc.), you will be able to measure the parameters of the coaxial lines, you will be able to test the cables for to locate the defects. |

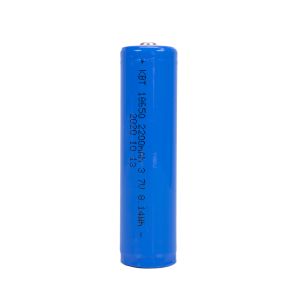

Along with the new technologyRigExpert Stick-230 is powered by the Li-Ion 3.7V type 18650 battery included in the package. Through the included USB cable, you can connect the analyzer to a computer both for power and for connection to the dedicated software, AntScope2. The dedicated software can also be used on Android and iOS compatible smartphones by activating the Bluetooth function. |
|
| Product identification | |
| Product code | PNI-SK-230 |
| Producer | RigExpert |
| Characteristics | |
| Frequency range | 0.1 to 230 MHz |
| Frequency step | 1 kHz resolution |
| Compatible with | 25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohm systems |
| SWR measurement range | 1 - 100 in numerical mode / 1 - 10 in graphic mode |
| SWR display | Numeric and bars |
| Range R and X | 0…10000, -10000…10000 |
| RF output | UHF type connector (SO-239) |
| Output signal form | 0.1 to 230 MHz |
| Power output | -10 dBm (at 50 Ohm load) |
| Battery life (100% charged) | maximum 4 hours of continuous measurement or maximum 2 days in stand-by mode |
| Screen | Monochrome 200x200px |
| USB port | Yes, for PC connection and power supply |
| size | 185 x 40 x 33 mm |
| Weight | 185 g with battery |
| Working temperature | 0°C ~ +40°C |
| Bluetooth | 4.2 BLE Single-mode, Class B |
| Dedicated application | Antscope |
| Package contents | |
| Analyzer | Yes |
| Battery | YES |
| USB cable | Yes |
| User manual | Yes |
| Neck strap | Yes |
