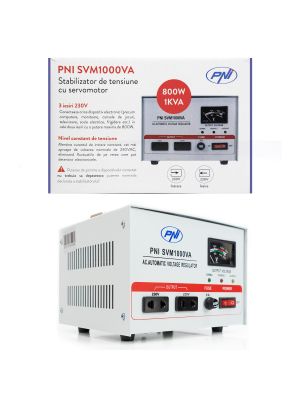

Voltage stabilizer PNI SVM1000VA

PNI SVM1000VA voltage stabilizer with servomotor, 800W, 3.6A, 230V output

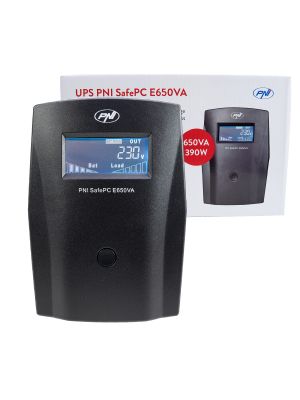

UPS PNI SafePC E650VA

UPS PNI SafePC E650VA, power 390W, 1.8A, output 2 x 230V, LCD screen, battery 7.2A included

PNI SVM2000VA voltage stabilizer with servomotor, 1600W, 7.2A, 230V output

Voltage stabilizer with servomotor, capacity 1600W 2KVA.
£90.05
Availability: In stock
SKU
PNI-SVM-2K

PNI-SVM2000VA-4

Easily solve the problem of unstable voltage in your home

The PNI SVM2000VA servo motor single-phase voltage stabilizer has been designed to keep the output voltage as stable as possible. When the voltage from the public network fluctuates, the stabilizer will automatically adjust the voltage as close as possible to the preset value.

Servo motor voltage stabilizers have large capacity, high efficiency, no wave distortion, automatic voltage regulation, long service life and performance.

Servo motor voltage stabilizers have a wide range of applications. Depending on their capacity, they can connect: electromechanical equipment, industrial equipment, air conditioners, televisions, household appliances, power tools, refrigerators and, in general, electronics that need stable voltage.

The principle of operation

When the unit measuring the input voltage detects a variation outside the preset range, it will send a signal to the control unit which will activate the servo motor. The secondary voltage transformer will change the polarity and magnitude of the compensation voltage and control the output voltage within the preset range.

Copper coil: The coil is the basic component of the voltage stabilizer. PNI SVM2000VA Single Phase Servo Motor Voltage Stabilizer uses high quality pure copper. Thus, the coil has a longer life and greater efficiency.

PNI-SVM2000VA-2

PNI-SVM2000VA-1

3 connections - 1 input - 2 output

The 3 connections on the strip divided into one input and two outputs on the rear panel have been subjected to several connection tests, to ensure that your household appliances can be used safely.

The maximum load supported by the PNI SVM2000VA voltage stabilizer is 1600W 7.2A . The stabilizer's 1600W 7A capacity allows connecting household appliances including TVs, printers, microwave ovens, fans and more.

Protection functions

The ventilation holes on both sides effectively disperse the heat generated in the conversion process. If there is an overload or short circuit, the built-in automatic circuit breaker will interrupt the current flow to protect your devices.

Other protections: start delay, mechanical error, over current, short circuit, over temperature.

PNI-SVM2000VA-3

Video presentation

PNI SVM2000VA voltage stabilizer with servomotor, 1600W, 7 2A, 230V output UK

Write Your Own Review
You're reviewing:PNI SVM2000VA voltage stabilizer with servomotor, 1600W, 7.2A, 230V output
Your Rating
Characteristics
Capacity 1600W/2000VA
Current 7.2A
Output connectors Ruler L / N / PE / N / L / N / L
Output voltage 230
Input frequency 50/60 Hz
Nominal input voltage 170Vac-260Vac
Overheating protection Yes
Short circuit protection Yes
Overload protection Yes
Working temperature -26°C ~ +80°C
Moisture ≤ 90%
size 235 X 260 X 180 mm
Ventilation fan
Overvoltage protection Yes
Low voltage protection Yes
Phase phase
Wave form sine
Package contents
Voltage stabilizer Yes
User manual Yes
Accessory The cable is not included
