PNI SVM-10K voltage stabilizer with 10000VA, 8000W servomotor, 230V output
Automatic voltage stabilizerPNI SVM-10K voltage stabilizer with servomotor consists of a contact voltage regulator, a servo-electric motor and a self-control circuit. The self-sampling circuit that sends a signal for the operation of the actuator and for adjusting the position of the brush carbon, will ensure a continuous adjustment and an output voltage as constant as possible. | |
Automatic voltage adjustmentThe PNI SVM-10K single-phase voltage stabilizer has been designed to maintain a constant voltage level at the output. When the mains voltage fluctuates, the stabilizer will automatically adjust the voltage as close as possible to the preset value to ensure the normal operation of the various electrical and electronic equipment. Servomotor voltage stabilizers have high capacity, high efficiency, no wave distortion, automatic voltage adjustment, long service life and performance. | |
Single-phase AVR - applicationsPNI SVM-10K Single Phase Voltage Stabilizer can be widely used in industry, agriculture, transportation, post and telecommunications, military, railway, scientific, cultural, metalworking industry, in production lines, together with equipment engineering, medical equipment, computer control equipment, radio and television. | |

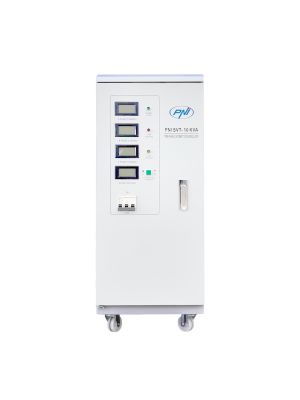

Input / output voltage displayWhen dealing with high powers, control and protection systems must be in place. Thus , the PNI SVM-10K Voltage Stabilizer is equipped with 2 analog screens that instantly display the voltage read at the input and output. In addition to the control systems, we also have protection systems: automatic protection switch for overload, short circuit, over temperature, mechanical error, and delay in starting. |
Characteristics | |
Capacity | 10KVA |
Output connectors | Ruler L / N / PE / N / L / N / L |
Output voltage | 230 |
Input frequency | 50/60 Hz |
Nominal input voltage | 160V ~ 255V AC |
Overheating protection | Yes |
Short circuit protection | Yes |
Overload protection | Yes |
Efficiency | ≥96% |
Working temperature | -10°C ~ +45°C |
Moisture | max. 95% (without condensation) |
size | 410 X 240 X 370 mm |
Weight | 25.45 kg |
Overvoltage protection | Yes |
Low voltage protection | Yes |
Phase | phase |
Wave form | sine |
Power factor | 0.8 |
Package contents | |
Voltage stabilizer | Yes |
User manual | Yes |
