AT2001PL-b

CB LEMM Turbo 2001 CENTROTETTO AT2001PL antenna without cable, length 200 cm, gain 6.5dB, 26-28.5MHz, 2000W, PL259 mount, made in Italy

Antenna-CB-LEMM-TURBOSTAR-3001

CB antenna LEMM AT-3001 TURBOSTAR Black 200 cm, with 4 m RG58 cable, 26.5 - 28 MHz, foldable, made in Italy

CB LEMM TURBO IMPERO antenna, white, length 200 cm, 7dB gain, 26.5-28Mhz, 2500W, RG58 4m cable, made in Italy

CB LEMM TURBO IMPERO antenna, length 200 cm, gain 7dB, 26.5-28Mhz, 2500W, RG58 4m cable, made in Italy
£84.25
Availability: In stock
SKU
PNI-AT-661

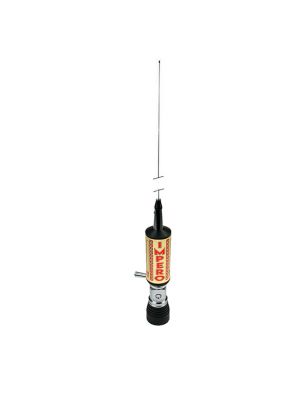

LEMM TURBO IMPERO CB antenna

Length 200 cm

The LEMM TURBO IMPERO CB antenna with a length of 200 centimeters helps the emission and reception in the CB band at a distance of up to 15 km (in ideal conditions, without obstacles).

Factors influencing communication distance:
» Antenna length: longer antennas will have a greater range than shorter antennas.
» Mounting location: the higher the antenna is mounted, the better the range.
» Installation quality: installation mistakes, such as the lack of ground, will lead to a high SWR value and a limited range of action.
» The surrounding relief: The surrounding relief plays a huge role in determining the range of action. Obstacles, such as buildings or forested areas will limit the range of action.

Cable and mount for fixed attachment included

Thanks to the included accessories (mount and RG58 cable), mounting the antenna becomes a simple and fast thing:

» Connect the antenna to a separately purchased fixed support (for example: PNI SPA100, PNI SPA110, PNI L1) previously mounted on the car.
» Test the SWR in an open area using a reflectometer. In some cases it may be necessary to raise or shorten the wire to obtain an optimal SWR value. For optimal results, we recommend that this procedure, called calibration, be performed by authorized personnel with special equipment.
» Connect a PL259 plug (not included) from the end of the antenna cable to the antenna plug on the back of the station.

LEMM TURBO IMPERO CB antenna

LEMM TURBO IMPERO CB antenna

Made in Italy

LEMM antennas are manufactured in Italy with Italian machinery and rigorously assembled by hand . This allows maximum control over the quality of LEMM products.

Write Your Own Review
You're reviewing:CB LEMM TURBO IMPERO antenna, white, length 200 cm, 7dB gain, 26.5-28Mhz, 2500W, RG58 4m cable, made in Italy
Your Rating
Product identification
Product code PNI-AT-661
Work tape ? B
Product color (spike) Silver
General characteristics
Working frequency 26.5 - 28.0 MHz
Maximum power applied 2500W
Minimum SWR in the center of the band 1.1- 1.2
Length 2000 mm
Impedance 50 Ohms
Material Stainless steel
Weight 742 gr
I earn +7dBi
Working distance 20 km
Operating temperature -26°C ~ +80°C
The package contains
Radio station antenna Yes
RG58 cable Yes, 4 m
Fixed mount Yes



PNI-AT-661
Lang Type Name Link
RO User manual Manual utilizare RO Link
