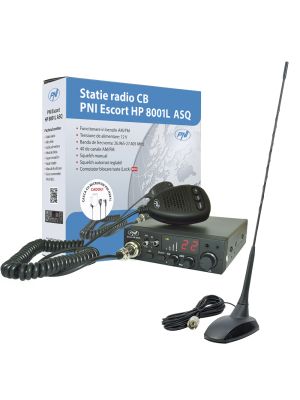

CB Radio Station CB PNI ESCORT HP 8000L ASQ + CB PNI Extra 48 with Magnet

Details

	ASQ Adjustable An innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band.
ASQ button on microphone For increased comfort at the wheel, PNI has positioned the automatic squelch activation/deactivation (ASQ) button on the microphone. In addition to this button, we also find up/down buttons on the microphone for changing channels, so you will no longer have to take your eyes off the road to operate these main functions.
	Small dimensions You can use the product in any car, as it is one of the smallest CB stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between the seats, without being inconvenient or disturbing.
Key lock switch The PNI Escort HP 8000L CB radio station has a switch on the front panel that allows you to select the emergency channel (19), the normal operating mode (CH) and activate the key lock function (L) , a useful function in situations where you want to avoid accidentally touching the station keys.

Discreet and efficient

The PNI Extra 48 antenna is among the smallest CB antennas (it has a height of only 45 cm) and can be mounted on both cars and vans or minibuses. Its small dimensions make it almost unnoticeable, easily confused with a radio antenna. The maximum reception distance is 10 km.

CB antenna PNI Extra 45 with magnet included SWR 1.0

Anti-noise design

The PNI Extra 48 antenna has a special anti-noise design that allows air to slide around the spike, eliminating wind noise.

Video presentation
CB PNI Escort HP 8000L

Reviews

Technical specifications

Product Identification
Product code	PNI-PACK40
General characteristics of radio station
Pattern	Furniture
Transmission band type	AM-FM
Frequency	26.965-27.405 MHz
Channels	40 AM/FM
Microphone Type	6 pins
Audio Signal Distortion	less than 8 % @ 1 KHz
Transmitting power	4 W
Modulation	FM: 3KHz ± 0.2KHz, AM: 85-90%
Power supply	12 V
Consumption	2Nd
Dimensions / Weight	115 x 36 x 152 mm / 0.8 kg
Special radio station features
ASQ (automatic squelch)	Yes
Channel Scan
Keyboard lock	Yes
Emergency channel button 9/19	Yes
Adjustable ASQ	Yes
Radio antenna features
Working frequency	26.965 - 27.405 Mhz
Maximum applied power	150 W
Minimum S.W.R. in the center of the band	less than 1.2
Antenna length	45 cm (magnetic base included) Ear length: 44 cm
Working distance	10 km
Impedance	50 Ohms
Material	Fiberglass
Connector Type	PL259
Cable length	4m
The package contains
CB radio station	Yes
CB Radio Antenna	Yes
Magnetic base	Yes
