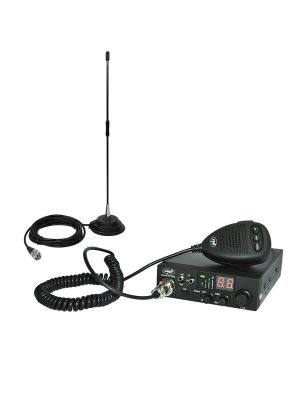

CB PNI ESCORT CB 8024 ASQ 12 / 24V radio CB + CB PNI Extra 45 magnet antenna
| Dual power supply 12V-24V DCThe PNI Escort HP 8024 CB radio station can be mounted both on cars with 12V power supply, and on trucks or TIRs with 24V power supply. |
ASQ AdjustableAn innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of car CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and jamming in the CB band. |
|
| ASQ button on microphoneFor increased comfort at the wheel, PNI has positioned the automatic squelch activation/deactivation (ASQ) button on the microphone. Next to it we also find the up/down buttons for changing channels. |
Key lock switchThe PNI Escort HP 8024 CB radio station has a switch on the front panel that allows you to select the emergency channel (19), the normal operating mode (CH) and activate the key lock function (L), a useful function in situations where you want to avoid accidentally touching the station keys. |
|
| Small dimensionsYou can use the product in any car, as it is one of the smallest CB radio stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, dashboard, between the seats, without being inconvenient or disturbing. |
Discreet and efficientThe PNI Extra 45 antenna is the smallest CB antenna (it has a height of only 45 cm) that can be mounted on both cars and vans or minibuses. Its small dimensions make it almost unnoticeable, easily confused with a radio antenna. The average reception distance is 10 km. |
|
| Easy installation and calibrationThe PNI Extra 45 antenna is easy to install, by simply screwing the spike onto the magnet fixed on the car's dome, but also to calibrate, by rotating the tip with a screw, until the desired performance is obtained. It is recommended that the antenna adjustment/calibration be carried out by specialized personnel with the relevant equipment. |
Anti-noise designThe PNI Extra 45 antenna has a special anti-noise design that allows air to slide around the spike, eliminating wind noise. |
|
| Product Identification | |
| Product code | PNI-PACK11 |
| General characteristics of radio station | |
| Pattern | Furniture |
| Transmission band type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| Channels | 40 AM/FM |
| Microphone Type | 6 pins |
| Speaker Audio Power | 2 W |
| Audio Signal Distortion | less than 8 % @ 1 KHz |
| Transmitting power | 4 W+ |
| Modulation | FM: 1.8KHz ± 0.2KHz, AM: 85-95% |
| Power supply | 12 -24 V |
| Consumption | 2 A |
| Dimensions / Weight | 115 x 36 x 152 mm / 0.8 kg |
| Special radio station features | |
| ASQ (automatic squelch) | Yes |
| Keyboard lock | Yes |
| Emergency channel button 9/19 | Yes |
| Adjustable ASQ | Yes |
| Radio antenna features | |
| Working frequency | 26.965 - 27.405 Mhz |
| Number of channels | 80 |
| Maximum applied power | 150 W |
| Minimum S.W.R. in the center of the band | 1,0 |
| Antenna length | 45 cm |
| Working distance | 7 km |
| Impedance | 50 Ohms |
| Material | Fiberglass |
| Connector Type | PL259 |
| Magnetic base included | Yes |
| Magnetic base diameter | 90 mm |
| Cable length | 3m |
| The package contains | |
| CB radio station | Yes |
| CB Radio Antenna | Yes |
| Magnetic base | Yes |
